DTA114YETL

Transistors Switching (Resistor Biased) PNP 50V 70MA

product image

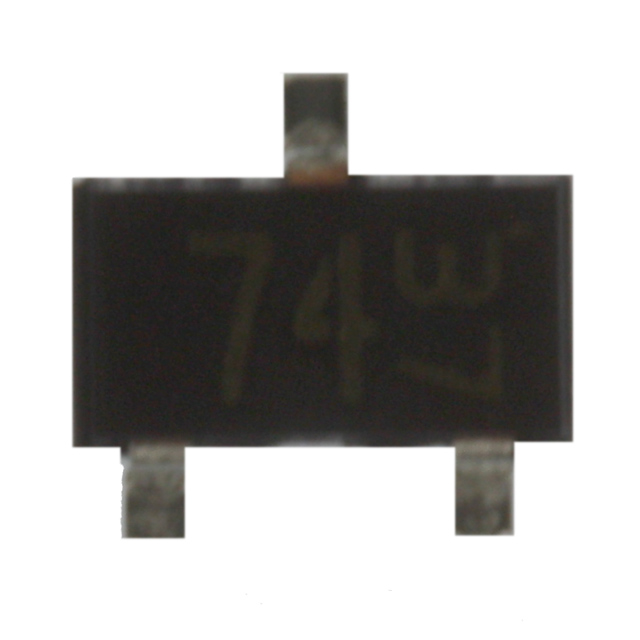

DTA114YETL Picture
See larger image
SeekIC No. : 00222193 Detail

DTA114YETL: Transistors Switching (Resistor Biased) PNP 50V 70MA

DTA114YETL Data Sheet

floor Price/Ceiling Price

US $ .05~.23 / Piece | Get Latest Price
Part Number:
DTA114YETL
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.23
  • $.14
  • $.09
  • $.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Transistor Polarity : PNP
Typical Input Resistor : 10 KOhms Typical Resistor Ratio : 4.7
Mounting Style : SMD/SMT Package / Case : EM-3
Collector- Emitter Voltage VCEO Max : - 50 V Continuous Collector Current : - 70 mA
Peak DC Collector Current : - 100 mA Power Dissipation : 150 mW
Maximum Operating Temperature : + 150 C Packaging : Reel

Description

Maximum Operating Frequency :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Typical Input Resistor : 10 KOhms
Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : - 50 V
Configuration : Single
Peak DC Collector Current : - 100 mA
Power Dissipation : 150 mW
Typical Resistor Ratio : 4.7
Continuous Collector Current : - 70 mA
Package / Case : EM-3


Parameters:

Technical/Catalog InformationDTA114YETL
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max150mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)47K
Vce Saturation (Max) @ Ib, Ic300mV @ 250A, 5mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Frequency - Transition250MHz
Mounting TypeSurface Mount
Package / CaseSC-75-3, SOT-416, EMT3
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTA114YETL
DTA114YETL
DTA114YETLTR ND
DTA114YETLTRND
DTA114YETLTR
