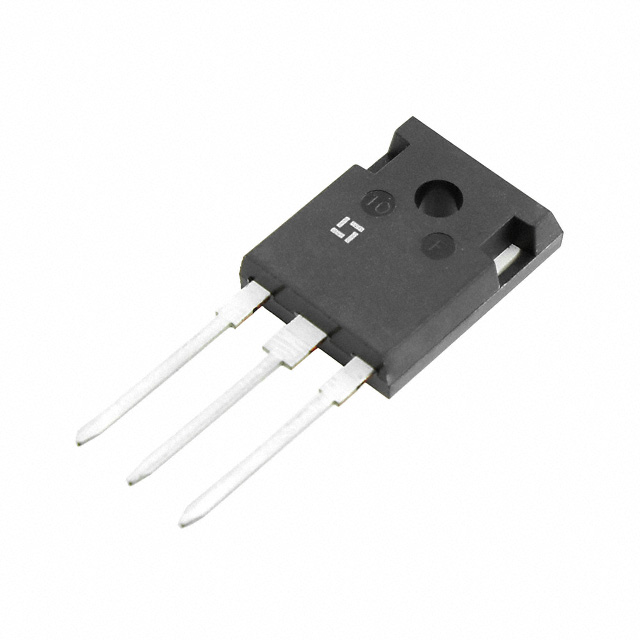

See larger image

SeekIC No. : 00189059 Detail

DSSK80-006BR: Schottky (Diodes & Rectifiers) 80 Amps 60V

DSSK80-006BR Data Sheet

Get Latest Price

Part Number:: DSSK80-006BR
Mfg:: Ixys
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DSSK 28-0045B evaluate
Features: • International standard package• Very low VF• Extremely low switching...
DSSK 28-006B evaluate
Features: • International standard package• Very low VF• Extremely low switching...
DSSK 28-006BS evaluate
Features: • International standard package• Very low VF• Extremely low switching...

Product Details

Quick Details

Product :	Schottky Diodes	Peak Reverse Voltage :	60 V
Forward Continuous Current :	80 A	Max Surge Current :	600 A
Configuration :	Dual Common Cathode	Forward Voltage Drop :	0.55 V at 40 A
Maximum Reverse Leakage Current :	20000 uA	Operating Temperature Range :	- 55 C to + 150 C
Mounting Style :	SMD/SMT	Package / Case :	ISOPLUS-247
Packaging :	Tube

Description

Recovery Time :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Schottky Diodes
Packaging : Tube
Operating Temperature Range : - 55 C to + 150 C
Peak Reverse Voltage : 60 V
Configuration : Dual Common Cathode
Forward Continuous Current : 80 A
Maximum Reverse Leakage Current : 20000 uA
Max Surge Current : 600 A
Package / Case : ISOPLUS-247
Forward Voltage Drop : 0.55 V at 40 A

Parameters:

Technical/Catalog Information	DSSK80-006BR
Vendor	IXYS
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io) (per Diode)	40A
Voltage - Forward (Vf) (Max) @ If	550mV @ 40A
Current - Reverse Leakage @ Vr	22mA @ 60V
Reverse Recovery Time (trr)	-
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	ISOPLUS247?
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DSSK80 006BR DSSK80006BR
