DSP56007

Features: • Efficient, object code compatible with the 24-bit DSP56000 core family engine• Up to 44 Million Instructions Per Second (MIPS)-22.7 ns instruction cycle at88 MHz• Highly parallel instruction set with unique DSP addressing modes• Two 56-bit accumulators including...

product image

DSP56007 Picture
See larger image
SeekIC No. : 004329612 Detail

DSP56007: Features: • Efficient, object code compatible with the 24-bit DSP56000 core family engine• Up to 44 Million Instructions Per Second (MIPS)-22.7 ns instruction cycle at88 MHz• Highl...

DSP56007 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DSP56007
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Efficient, object code compatible with the 24-bit DSP56000 core family engine
• Up to 44 Million Instructions Per Second (MIPS)-22.7 ns instruction cycle at
88 MHz
• Highly parallel instruction set with unique DSP addressing modes
• Two 56-bit accumulators including extension byte
• Parallel 24*24-bit multiply-accumulate in 1 instruction cycle (2 clock cycles)
• Double precision 48* 48-bit multiply with 96-bit result in 6 instruction cycles
• 56-bit addition/subtraction in 1 instruction cycle
• Fractional and integer arithmetic with support for multiprecision arithmetic
• Hardware support for block floating-point Fast Fourier Transforms (FFT)
• Hardware nested DO loops
• Zero-overhead fast interrupts (2 instruction cycles)
• Four 24-bit internal data buses and three 16-bit internal address buses for
simultaneous accesses to one program and two data memories
• Fabricated in high-density CMOS


Pinout

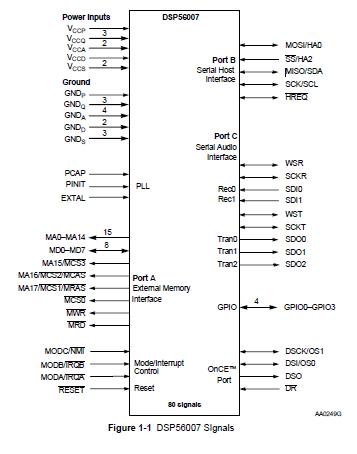

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Supply Voltage
VCC
0.3 to +7.0
V
All Input Voltages
VIN
GND - 0.5 to VCC + 0.5
V
Current Drain per Pin excluding VCC and GND
I
10
mA
Operating Temperature Range:
• 50 and 66 MHz
• 88 MHz
TJ
40 to +125
40 to +110
 °C
°C
Storage Temperature
Tstg
55 to +150
°C
