DSEI12

Features: ·International standard package JEDEC TO-220 AC·Planar passivated chips·Very short recovery time·Extremely low switching losses·Low IRM-values·Soft recovery behaviour·Epoxy meets UL 94V-0Application·Antiparallel diode for high frequency switching devices·Anti saturation diode·Snubber dio...

product image

DSEI12 Picture
See larger image
SeekIC No. : 004329542 Detail

DSEI12: Features: ·International standard package JEDEC TO-220 AC·Planar passivated chips·Very short recovery time·Extremely low switching losses·Low IRM-values·Soft recovery behaviour·Epoxy meets UL 94V-0A...

DSEI12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DSEI12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·International standard package JEDEC TO-220 AC
·Planar passivated chips
·Very short recovery time
·Extremely low switching losses
·Low IRM-values
·Soft recovery behaviour
·Epoxy meets UL 94V-0


Application

·Antiparallel diode for high frequency switching devices
·Anti saturation diode
·Snubber diode
·Free wheeling diode in converters and motor control circuits
·Rectifiers in switch mode power supplies (SMPS)
·Inductive heating and melting
·Uninterruptible power supplies (UPS)
·Ultrasonic cleaners and welders


Pinout

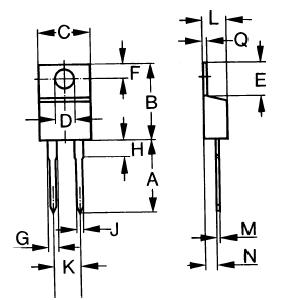

Connection Diagram


Specifications

Symbol Test Conditions Maximum Ratings
IFRMS TVJ = TVJM 25 A
IFAVM TC = 100°C; rectangular, d = 0.5 14 A
IFRM tP < 10 ms; rep. rating, pulse width limited by TVJM 150 A
IFSM
 TVJ = 45°C; t = 10 ms (50 Hz), sine
t = 8.3 ms (60 Hz), sine

100
110

 A
A
TVJ = 150°C; t = 10 ms (50 Hz), sine
t = 8.3 ms (60 Hz), sine		 85
95		 A
A
I2t TVJ = 45°C t = 10 ms (50 Hz), sine
t = 8.3 ms (60 Hz), sine		 50
50		 A2s
A2s
TVJ = 150°C; t = 10 ms (50 Hz), sine
t = 8.3 ms (60 Hz), sine		 36
37		 A2s
A2s
TVJ   -40...+150 °C
TVJM   150 °C
Tstg   -40...+150 °C
Ptot TC = 25°C 62 W
Md Mounting torque 0.4...0.6 Nm
Weight
2		 g
