DSEE55-24N1F

Rectifiers 55 Amps 1200V

product image

DSEE55-24N1F Picture
See larger image
SeekIC No. : 00175891 Detail

DSEE55-24N1F: Rectifiers 55 Amps 1200V

DSEE55-24N1F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DSEE55-24N1F
Mfg:
Ixys
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Dual
Reverse Voltage : 2400 V Forward Voltage Drop : 2.9 V at 120 A
Recovery Time : 90 ns Forward Continuous Current : 60 A
Max Surge Current : 800 A Reverse Current IR : 1000 uA
Mounting Style : SMD/SMT Package / Case : ISOPLUS i4-PAC
Packaging : Tube

Description

Product : Ultra Fast Recovery Rectifiers
Mounting Style : SMD/SMT
Configuration : Dual
Max Surge Current : 800 A
Packaging : Tube
Forward Continuous Current : 60 A
Reverse Current IR : 1000 uA
Recovery Time : 90 ns
Reverse Voltage : 2400 V
Package / Case : ISOPLUS i4-PAC
Forward Voltage Drop : 2.9 V at 120 A


Features:

`HiPerFREDTM Epitaxial Diodes
- fast and soft reverse recovery low switching losses
- avalanche rated
- low leakage current
`ISOPLUS i4-PACTM package
- isolated back surface
- low coupling capacity between pins and heatsink
- enlarged creepage towards heatsink
- enlarged creepage between pins
- application friendly pinout
- high reliability
- industry standard outline


Application

·rectifiers
- high frequency rectifiers, output
·rectifiers of switched mode power supplies
- mains rectifiers with minimized emission of disturbances
·diodes in snubber networks
·high voltage diodes using the series connection in the component


Pinout

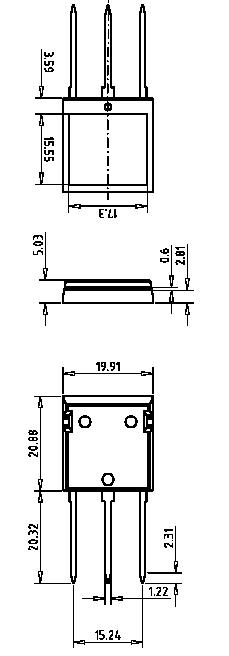

Connection Diagram


Specifications

Symbol Conditions Maximum Ratings
VRRM   2400 V
VRRM   1200 V
IFAV TC = 90°C; sine 180° 53 A
IF(AV)M
 TC = 90°C; d = 0.5 rectangular


55

A
IFSM TVJ = 25°C; t = 10 ms; sine 50 Hz 500 A
EAS IAS = 16 A; LAS = 180 µH; TC = 25°C; non repetitive 28 mJ
Ptot TC = 25°C (per diode) 200 W



Parameters:

Technical/Catalog InformationDSEE55-24N1F
VendorIXYS
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration1 Pair Series Connection
Voltage - DC Reverse (Vr) (Max)2400V (2.4kV)
Current - Average Rectified (Io) (per Diode)55A
Voltage - Forward (Vf) (Max) @ If2.5V @ 40A
Current - Reverse Leakage @ Vr1mA @ 2400V
Reverse Recovery Time (trr)220ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Radial
Package / CaseISOPLUS i4-PAC?
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DSEE55 24N1F
DSEE5524N1F
