Product Details

Description



Features:

· Programmable slew rate limiting
· Meets EIA Standard RS-423
· Commercial or extended temperature range
· Output short circuit protection
· TTL and CMOS compatible inputs




Pinout

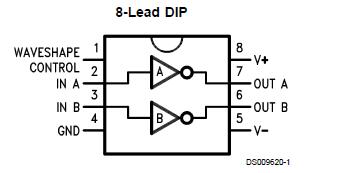

Connection Diagram




Specifications

Storage Temperature Range
Ceramic DIP .............................−65°C to +175°C
Molded DIP .............................−65°C to +150°C
Lead Temperatur
Ceramic DIP (Soldering, 60 seconds) ......................300°C
Molded DIP (Soldering, 10 seconds) ...................... 265°C
Maximum Power Dissipation* at 25°C (Note 5)
Cavity Package ................................1560 mW
Molded Package ............................... 1300 mW
V+ Lead Potential to Ground Lead .....................V− to +15V
V− Lead Potential to Ground Lead ...................+0.5V to −15V
V+ Lead Potential to V− Lead.......................0V to +30V
Output Potential to Ground Lead........................ ±15V
Output Source Current ............................−150 mA
Output Sink Current ..............................150 mA




Description

The DS9636A is a TTL/CMOS compatible, dual, single ended line driver which has been specifically designed to satisfy the requirements of EIA Standard RS-423.

The DS9636A is suitable for use in digital data transmission systems where signal wave shaping is desired. The output slew rates are jointly controlled by a single external resistor connected between the wave shaping control lead (WS) and ground. This eliminates any need for external filtering of the output signals. Output voltage levels and slew rates are independent of power supply variations. Current-limiting is provided in both output states. The DS9636A is designed for nominal power supplies of ±12V.

DS9636A Inputs are TTL compatible with input current loading low enough (1/10 UL) to be also compatible with CMOS logic. Clamp diodes are provided on the inputs to limit transients below ground.
