DS92LV1212

Features:

·Clock recovery without SYNC patterns-random lock
·Guaranteed transition every data transfer cycle
·Chipset (Tx + Rx) power consumption < 300mW (typ) @ 40MHz
·Single differential pair eliminates multi-channel skew
·400 Mbps serial Bus LVDS bandwidth (at 40 MHz clock)
·10-bit parallel interface for 1 byte data plus 2 control bits or UTOPIA I Interface
·Synchronization mode and LOCK indicator
·Flow-through pinout for easy PCB layout
·High impedance on receiver inputs when power is off
·Programmable edge trigger on clock
·Footprint compatible with DS92LV1210
·Small 28-lead SSOP package-MSA

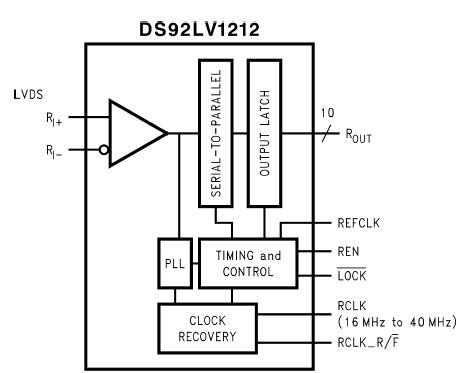

Pinout




Specifications

Supply Voltage (V_CC)                                                          −0.3V to +4V
CMOS/TTL Input Voltage                                        −0.3V to (V_CC +0.3V)
CMOS/TTL Output Voltage                                      −0.3V to (V_CC +0.3V)
Bus LVDS Receiver Input Voltage                                    −0.3V to +3.9V
Junction Temperature                                                                +150°C
Storage Temperature                                                −65°C to +150°C
Lead Temperature (Soldering, 4 seconds)                                 +260°C
Maximum Package Power Dissipation Capacity @                          25°C
Package: 28L SSOP                                                                      1.27 W
Package Derating: 28L SSOP                       10.2 mW/°C above +25°C
ESD Rating (HBM)                                                                          >2.5kV


Description

The DS92LV1212 is an upgrade of the DS92LV1210. It maintains all of the features of the DS92LV1210 with the additional capability of locking to the incoming data stream without the need of SYNC patterns.

This makes the DS92LV1212 useful in applications where the Deserializer must be operated "open-loop"-without a feedback path from the Deserializer to the Serializer. The DS92LV1212 is designed to be used with the DS92LV1021 Bus LVDS Serializer.

The DS92LV1212 receives a Bus LVDS serial data stream and transforms it into a 10-bit wide parallel data bus and separate clock. The reduced cable, PCB trace count and connector size saves cost and makes PCB layout easier. Clock-to-data and data-to-data skews are eliminated since one input receives both clock and data bits serially.

The DS92LV1212 powerdown pin is used to save power by reducing the supply current when the device is not in use. The Deserializer will establish lock to a synchronization pattern within specified lock times but it can also lock to a data stream without SYNC patterns.
