Product Details

Description

Pinout

Specifications

Function	Serializer
Color Depth	18 bpp
Pixel Clock Max	43 MHz
Pixel Clock Min	5 MHz
Compression Ratio	24:1
Input Compatibility	LVCMOS
Output Compatibility	FPD- Link II LVDS
Signal Conditioning	Pre-emphasis, VOD Select
AEC Q-100 Automotive Grade	2
Power Consumption_	215 mW
Total Throughput	1032 Mbps
Payload/Channel	1032 Mbps
Reference Clock Req'd Deserializer	No
Start/Stop Bit	Yes
Embedded Clock	Yes
Special Features	Pre-Emphasis, DC Balance, VOD Select
Eval Kit	SERDESUR-43USB
ESD	8 kV
Supply Voltage	3.3 Volt
Temperature Min	-40 deg C
Temperature Max	105 deg C
Automotive Selection Guide	Yes
DisplayType	LCD
PowerWise	No
Communications	No
Sensing & Imaging	Yes
Parallel Bus Width	24 bits
View Using Catalog

Description

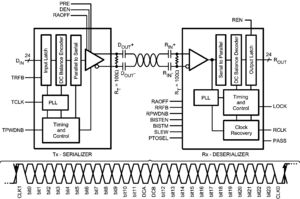

The DS90UR241/124 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. It saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.

The DS90UR241/124 incorporates LVDS signaling on the high-speed I/O. LVDS provides a low power and low noise environment for reliably transferring data over a serial transmission path. By optimizing the Serializer output edge rate for the operating frequency range EMI is further reduced.

In addition the DS90UR241 device features pre-emphasis to boost signals over longer distances using lossy cables. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects. Using National Semiconductor's proprietary random lock, the Serializer's parallel data are randomized to the Deserializer without the need of REFCLK.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
DS90UR241IVS	CMOS7	0	16561	0	0	954000	4	270700104
DS90UR241IVSX	CMOS7	0	16561	0	0	954000	4	270700104
DS90UR241QVS	CMOS7	0	16561	0	0	954000	4	270700104
DS90UR241QVSX	CMOS7	0	16561	0	0	954000	4	270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Design Tools

Title	Size in Kbytes	Date
LVDS Owner's Manual - 3rd Edition	2 Kbytes	4-Jan-2008	View
Evaluation Kit for DS90UR241/DS90UR124 Serializer and Deserializer Chipset			View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Reference Designs

•	RD-167 - High Efficiency Portable Media Player (PMP) Docking Station

Application Notes

Title	Size in Kbytes	Date
AN-1898: Application Note 1898 LVDS Repeaters and Crosspoints Extend the Reach of FPD-Link II Interfaces	308 Kbytes	4-Sep-08	Download
AN-1826: Application Note 1826 Extending the Reach of a FPD-Link II Interface with Cable Drivers and Equalizers	251 Kbytes	24-Mar-08	Download
AN-1909: Application Note 1909 DS15BA101 and DS15EA101 Enable Long Reach Applications for Embedded Clock SER/DES	360 Kbytes	2-Mar-09	Download
AN-1807: Application Note 1807 FPD-Link II Display SerDes Overview	102 Kbytes	14-May-08	Download
