Product Details

Description



Features:

·>400 Mbps (200 MHz) switching rates
·Flow-through pinout simplifies PCB layout
·150 ps channel-to-channel skew (typical)
·100 ps differential skew (typical)
·2.7 ns maximum propagation delay
·3.3V power supply design
·High impedance LVDS inputs on power down
·Low Power design (40mW 3.3V static)
·Interoperable with existing 5V LVDS drivers
·Accepts small swing (350 mV typical) differential signal levels
·Supports open, short and terminated input fail-safe
·Conforms to ANSI/TIA/EIA-644 Standard
·Industrial temperature operating range (-40°C to +85°C)
·Available in SOIC and TSSOP package




Pinout

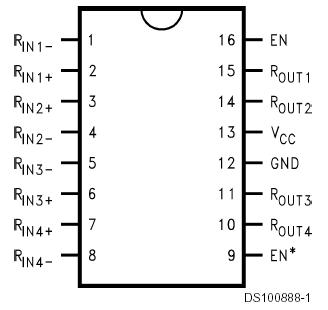

Connection Diagram




Specifications

PHY Type Receiver
Family LVDS
Channels 4 Channels
Max Data Rate 400 Mbps
Input Compatibility LVDS
Output Compatibility LVTTL
Power Consumption_ 30 mW
Special Features Ganged Enable
SupplyVoltage 3.3 Volt
JTAG1149.1 No
Temperature Min -40 deg C
Temperature Max 85 deg C
Function Receiver
View Using Catalog


Supply Voltage (VCC) −0.3V to +4V
Input Voltage (RIN+, RIN−) −0.3V to 3.9V
Enable Input Voltage (EN, EN*) −0.3V to (VCC + 0.3V)
Output Voltage (ROUT) −0.3V to (VCC + 0.3V)
Maximum Package Power Dissipation+25°C
M Package1025 mW
MTC Package 866 mW
Derate M Package 8.2 mW/°C above +25°C
Derate MTC Package6.9 mW/°C above +25°C
Storage Temperature Range−65°C to +150°C
Lead Temperature Range Soldering (4 sec.)+260°C
Maximum Junction Temperature +150°C
ESD Rating (Note 10)
(HBM, 1.5 kW, 100 pF) 10 kV
(EIAJ, 0 W, 200 pF) 1200 V




Description

The DS90LV048A is a quad CMOS flow-through differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The DS90LV048A accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver supports a TRI-STATE® function that may be used to multiplex outputs. The receiver also supports open, shorted and terminated (100) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV048A has a flow-through pinout for easy PCB layout.

The DS90LV048A EN and EN* inputs are ANDed together and control the TRI-STATE outputs. The enables are common to all four receivers. The DS90LV048A and companion LVDS line driver (eg. DS90LV047A) provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
DS90LV048ATM .35 0 18700 0 0 1290000 3 366041022
DS90LV048ATMTC .35 0 18700 0 0 1290000 3 366041022
DS90LV048ATMTCX .35 0 18700 0 0 1290000 3 366041022
DS90LV048ATMX .35 0 18700 0 0 1290000 3 366041022

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.
