DS90LV017

Features:

·Ultra Low Power Dissipation
·Operating Range above 155 Mbps
·Flow-through pinout simplifies PCB layout
·Conforms to TIA/EIA-644 Standard
·8-Lead SOIC Package Saves Space
·VCM ±1V center around 1.2V
·Low Differential Output Swing Typical 340 mV
·Power Off Protection (outputs in high impedance)

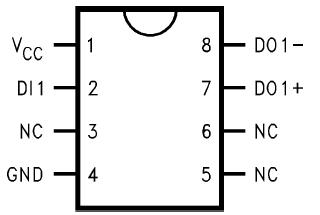

Pinout




Specifications

Supply Voltage (V_CC)                                                −0.3V to +6V
Input Voltage (DI)                                       −0.3V to (V_CC + 0.3V)
Output Voltage (DO±)                                          −0.3V to +3.9V
Maximum Package Power Dissipation @                           +25°C
M Package                                                                     1190 mW
Derate M Package                              9.5 mW/°C above +25°C
Storage Temperature Range                         −65°C to +150°C
Lead Temperature Range Soldering (4 sec.)                  +260°C
ESD Rating (Note 4) (HBM 1.5 kΩ, 100 pF)                      4.5 kV


Description

The DS90LV017 is a single LVDS driver device optimized for high data rate and low power applications. The DS90LV017 is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is in a 8-lead small Outline Package. The DS90LV017 has a flow-through design for easy PCB layout. The differential driver outputs provides low EMI with its low output swings typically 340 mV.
