Features:

·Compatible with ANSI TIA/EIA-644-A Standard
·>400 Mbps (200 MHz) switching rates
·100 ps differential skew (typical)
·3.5 ns maximum propagation delay
·Integrated line termination resistor (102Ω typical)
·Single 3.3V power supply design (2.7V to 3.6V range)
·Power down high impedance on LVDS inputs
·Accepts small swing (350 mV typical) differential signal levels
·LVDS receiver inputs accept LVDS/BLVDS/LVPECL inputs
·Supports open, short and terminated input fail-safe
·Pinout simplifies PCB layout
·Low Power Dissipation (10mW typical@ 3.3V static)
·SOT-23 5-lead package
·Leadless LLP-8 package (3x3 mm body size)
·SOT version pin compatible with SN65LVDS2, SN65LVDT2
·Electrically similar to the DS90LV018A
·Fabricated with advanced CMOS process technology
·Industrial temperature operating range (−40°C to +85°C)




Pinout

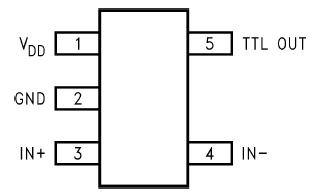

Connection Diagram




Specifications

PHY Type Receiver
Family LVDS
Channels 1 Channels
Max Data Rate 400 Mbps
Input Compatibility LVDS
Output Compatibility LVTTL
Power Consumption_ 18 mW
Special Features 2.7 to 3.6V operation
SupplyVoltage 3.3 Volt
JTAG1149.1 No
Temperature Min -40 deg C
Temperature Max 85 deg C
Function Receiver
View Using Catalog





Description

The DS90LV012A and DS90LT012A are single CMOS differential line receivers designed for applications requiring ultra low power dissipation, low noise, and high data rates. The devices are designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Swing (LVDS) technology

The DS90LV012A and DS90LT012A accept low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receivers also support open, shorted, and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV012A has a pinout designed for easy PCB layout. The DS90LT012A includes an input line termination resistor for point-to-point applications.

The DS90LV012A and DS90LT012A, and companion LVDS line driver provide a new alternative to high power PECL/ECL devices for high speed interface applications.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
DS90LV012ATMF CMOS7 0 16561 0 0 954000 4 270700104
DS90LV012ATMFX CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
