DS90LT012A

Features:

·Compatible with ANSI TIA/EIA-644-A Standard
·>400 Mbps (200 MHz) switching rates
·100 ps differential skew (typical)
·3.5 ns maximum propagation delay
·Integrated line termination resistor (102Ω typical)
·Single 3.3V power supply design (2.7V to 3.6V range)
·Power down high impedance on LVDS inputs
·Accepts small swing (350 mV typical) differential signal levels
·LVDS receiver inputs accept LVDS/BLVDS/LVPECL inputs
·Supports open, short and terminated input fail-safe
·Pinout simplifies PCB layout
·Low Power Dissipation (10mW typical@ 3.3V static)
·SOT-23 5-lead package
·Leadless LLP-8 package (3x3 mm body size)
·SOT version pin compatible with SN65LVDS2, SN65LVDT2
·Electrically similar to the DS90LV018A
·Fabricated with advanced CMOS process technology
·Industrial temperature operating range (−40°C to +85°C)

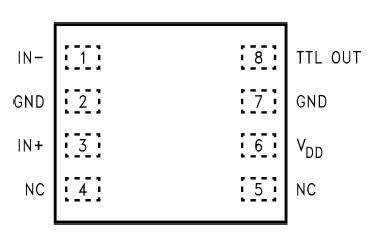

Pinout






Specifications

Supply Voltage (VDD) −0.3V to +4V
Input Voltage (IN+, IN−) −0.3V to +3.9V
Output Voltage (TTL OUT) −0.3V to (VDD + 0.3V)
Output Short Circuit Current−100mA
Maximum Package Power Dissipation @ +25°C
LDA Package 2.26 W
Derate LDA Package18.1 mW/°C above +25°C
Thermal resistance (JA) 55.3°C/W
MF Package 902mW
Derate MF Package 7.22 mW/°C above +25°C
Thermal resistance (JA) 138.5°C/W
Storage Temperature Range −65°C to +150°C
Lead Temperature Range Soldering
(4 sec.)+260°C
Maximum Junction
Temperature +150°C
ESD Ratings (Note 4)




Description

The DS90LV012A and DS90LT012A are single CMOS differential line receivers designed for applications requiring ultra low power dissipation, low noise, and high data rates.

The devices are designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Swing (LVDS) technology

The DS90LV012A and DS90LT012A accept low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receivers also support open, shorted, and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV012A has a pinout designed for easy PCB layout.

The DS90LT012A includes an input line termination resistor for point-to-point applications.

The DS90LV012A and DS90LT012A, and companion LVDS line driver provide a new alternative to high power PECL/ ECL devices for high speed interface applications.
