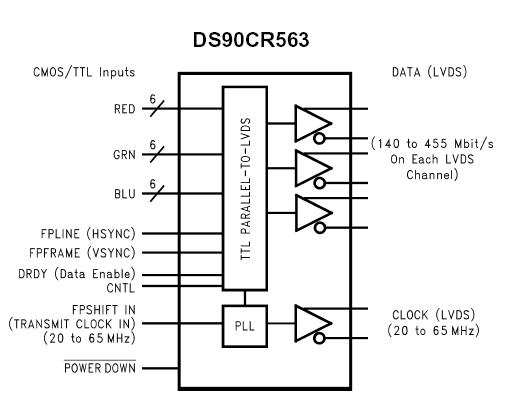

DS90CR563

Features:

·20 to 65 MHz shift clk support
·Up to 171 Mbytes/s bandwidth
·Cable size is reduced to save cost
·290 mV swing LVDS devices for low EMI
·Low power CMOS design (< 550 mW typ)
·Power-down mode saves power (< 0.25 mW)
·PLL requires no external components
·Low profile 48-lead TSSOP package
·Rising edge data strobe
·Compatible with TIA/EIA-644 LVDS standard
·Single pixel per clock XGA (1024 x 768)
·Supports VGA, SVGA, XGA and higher
·1.3 Gbps throughput


Pinout




Specifications

Supply Voltage (V_CC)                                                                     −0.3V to +6V
CMOS/TTL Input Voltage                                                  −0.3V to (V_CC + 0.3V)
CMOS/TTL Output Voltage                                                −0.3V to (V_CC + 0.3V)
LVDS Receiver Input Voltage                                            −0.3V to (V_CC + 0.3V)
LVDS Driver Output Voltage                                              −0.3V to (V_CC + 0.3V)
LVDS Output Short Circuit Duration Continuous
Junction Temperature                                                                           +150°C
Storage Temperature                                                           −65°C to +150°C
Lead Temperature (Soldering, 4 sec) +260°C
Maximum Package Power Dissipation @ +25°C
MTD48 (TSSOP) Package:
DS90CR563                                                                                              1.98W
DS90CR564                                                                                              1.89W
Package Derating:
DS90CR563                                                               16 mW/°C above +25°C
DS90CR564                                                               15 mW/°C above +25°C


Description

The DS90CR563 transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted. The DS90CR564 receiver converts the LVDS data streams back into 21 bits of CMOS/TTL data. At a transmit clock frequency of 65 MHz, 18 bits of RGB data and 3 bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) are transmitted at a rate of 455 Mbps per LVDS data channel. Using a 65 MHz clock, the data throughput is 171 Mbytes per second. These devices are offered with rising edge data strobes for convenient interface with a variety of graphics and LCD panel controllers.

This DS90CR563 chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
