DS90CR286A

Features:

`20 to 66 MHz shift clock support
`50% duty cycle on receiver output clock
`BestinClass Set & Hold Times on RxOUTPUTs
`Rx power consumption <270 mW (typ) @66MHz Worst Case
`Rx Power-down mode <200µW (max)
`ESD rating >7 kV (HBM), >700V (EIAJ)
`PLL requires no external components
`Compatible with TIA/EIA-644 LVDS standard
`Low profile 56-lead or 48-lead TSSOP package
`Operating Temperature: −40°C to +85°C


Pinout




Specifications

Supply Voltage (V_CC)                                                       −0.3V to +4V
CMOS/TTL Output Voltage                                  −0.3V to (V_CC + 0.3V)
LVDS Receiver Input Voltage                              −0.3V to (V_CC + 0.3V)
Junction Temperature                                                             +150°C
Storage Temperature                                             −65°C to +150°C
Lead Temperature (Soldering, 4 sec)                                      +260°C
Maximum Package Power Dissipation Capacity @                       25°C
MTD56 (TSSOP) Package: DS90CR286A                                     1.61 W
MTD48 (TSSOP) Package: DS90CR216A                                     1.89 W
Package Derating:
DS90CR286A                                             12.4 mW/°C above +25°C
DS90CR216A                                                15 mW/°C above +25°C
ESD Rating
(HBM, 1.5 kW, 100 pF)                                                                > 7 kV
(EIAJ, 0W, 200 pF)                                                                     > 700V


Description

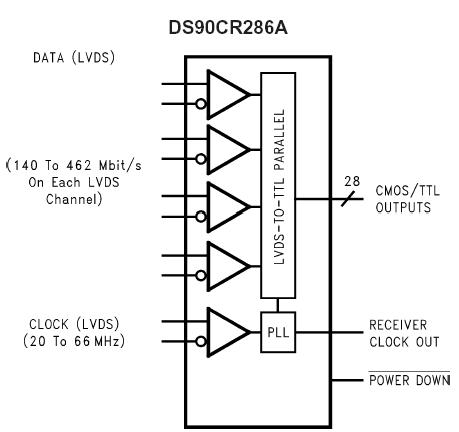

The DS90CR286A receiver converts the four LVDS data streams (Up to 1.848 Gbps throughput or 231 Megabytes/sec bandwidth) back into parallel 28 bits of CMOS/TTL data.

Also available is the DS90CR216A that converts the three LVDS data streams (Up to 1.386 Gbps throughput or 173 Megabytes/sec bandwidth) back into parallel 21 bits of CMOS/TTL data. Both Receivers' outputs are Rising edge strobe.

This DS90CR286A chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
