DS90C363B

Features:

`No special start-up sequence required between clock/data and /PD pins. Input signal (clock and data) can be applied either before or after the device is powered.
`Support Spread Spectrum Clocking up to 100kHz frequency modulation & deviations of ±2.5% center spread or −5% down spread.
`"Input Clock Detection" feature will pull all LVDS pairs to logic low when input clock is missing and when /PD pin is logic high.
`18 to 68 MHz shift clock support
`BestinClass Set & Hold Times on TxINPUTs
`Tx power consumption < 130 mW (typ) @65MHz Grayscale
`40% Less Power Dissipation than BiCMOS Alternatives
`Tx Power-down mode < 37µW (typ)
`Supports VGA, SVGA, XGA and Dual Pixel SXGA.
`Narrow bus reduces cable size and cost
`Up to 1.3 Gbps throughput
`Up to 170 Megabytes/sec bandwidth
`345 mV (typ) swing LVDS devices for low EMI
`PLL requires no external components
`Compatible with TIA/EIA-644 LVDS standard
`Low profile 48-lead TSSOP package
`Improved replacement for: SN75LVDS84, DS90C363A




Pinout






Specifications

Supply Voltage (V_CC) −0.3V to +4V
CMOS/TTL Input Voltage −0.3V to (V_CC + 0.3V)
LVDS Driver Output Voltage −0.3V to (V_CC + 0.3V)
LVDS Output Short Circuit Duration Continuous
Junction Temperature +150°C
Storage Temperature −65°C to +150°C
Lead Temperature (Soldering, 4 sec) +260°C
Maximum Package Power Dissipation Capacity @25°C
MTD48 (TSSOP) Package: DS90C363B 1.98 W
Package Derating: DS90C363B 16 mW/°C above +25°C
ESD Rating
(HBM, 1.5 kΩ, 100 pF) 7 kV
(EIAJ, 0Ω, 200 pF)500V




Description

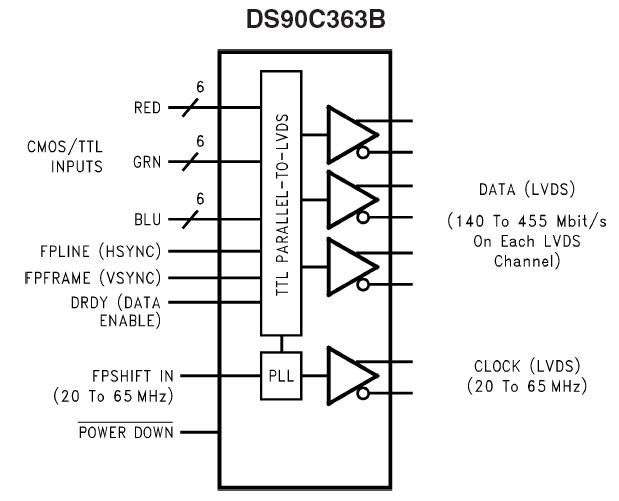

The DS90C363B transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted. At a transmit clock frequency of 65 MHz, 18 bits of RGB data and 3 bits of LCD timing and control data FPLINE, FPFRAME, DRDY) are transmitted at a rate of 455 Mbps per LVDS data channel. Using a 65 MHz clock, the data throughput is 170 Mbytes/sec. The DS90C363B transmitter can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe Receiver (DS90CF366) without any translation logic.

This chipset DS90C363B is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
