Pinout
Specifications| Drivers | 2 |
| Receivers | 2 |
| SupplyVoltage | 5 Volt |
| Process | Bipolar |
| Temperature Min | 0 deg C |
| Temperature Max | 70 deg C |
| View Using Catalog |
DescriptionThe DS8922/22A and DS8923A are Dual Differential Line Driver and Receiver pairs. These devices are designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, the devices meet the requirements of the EIA Standard RS-422.
These DS8922/22A and DS8923A devices offer an input sensitivity of 200 mV over a ±7V common mode operating range. Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms. An input fail-safe circuit is provided such that if the receiver inputs are open the output assumes the logical one state.
The DS8922A and DS8923A drivers are designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. Complementary outputs are logically ANDed and provide an output skew of 0.5 ns (typ.) with propagation delays of 12 ns.
Both devices DS8922/22A and DS8923A feature TRI-STATE outputs. The DS8922/22A have independent control functions common to a driver and receiver pair. The DS8923A has separate driver and receiver control functions.
Power up/down circuitry is featured which will TRI-STATE the outputs and prevent erroneous glitches on the transmission lines during system power up or power down operation.
The DS8922/22A and DS8923A are designed to be compatible with TTL and CMOS.
Application Notes
| Title |
Size in Kbytes |
Date |
|
| AN-457: Application Note 457 High Speed, Low Skew RS-422 Drivers and Receivers Solve Critical System Timing Problems |
212 Kbytes |
2-Oct-02 |
Download |
AN-457 (Japanese): Application Note 457 High Speed, Low Skew RS-422 Drivers and Receivers Solve Critical System Timing Problems

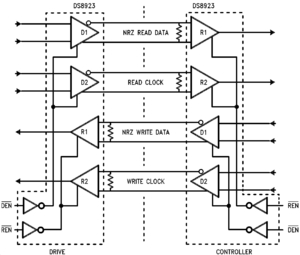

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram"> |
147 Kbytes |
|
|
If you have trouble printing or viewing PDF file(s), see Printing Problems.
|
DS8923A Data Sheet
