DS8669

Features: Direct 7-segment drive25 mA/segment current sink capabilityLow power requirementÐ16 mA typVery low input currentsÐ2 mA typInput clamp diodes to both VCC and groundNo multiplexing oscillator noisePinoutSpecificationsSupply Voltage......................................................

product image

DS8669 Picture
See larger image
SeekIC No. : 004329241 Detail

DS8669: Features: Direct 7-segment drive25 mA/segment current sink capabilityLow power requirementÐ16 mA typVery low input currentsÐ2 mA typInput clamp diodes to both VCC and groundNo multiplexing o...

DS8669 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS8669
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Direct 7-segment drive
 25 mA/segment current sink capability
 Low power requirementÐ16 mA typ
 Very low input currentsÐ2 mA typ
 Input clamp diodes to both VCC and ground
 No multiplexing oscillator noise


Pinout

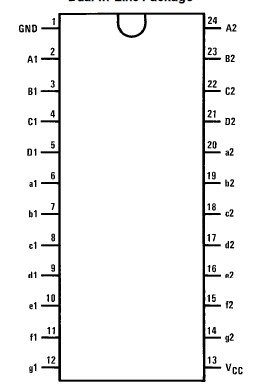

Connection Diagram


Specifications

Supply Voltage........................................................ 7V
Input Current.................................................... 20 mA
Output Voltage .....................................................12V
Storage Temperature Range ..............-65 to +150
Maximum Power Dissipation* at 25
Molded Package.......................................... 2005 mW
Lead Temperature (Soldering, 10 seconds) ......300


Description

The DS8669 is a 2-digit BCD to 7-segment decoder/driver for use with common anode LED displays. The DS8669 drives 2 7-segment LED displays without multiplexing. Outputs are open-collector, and capable of sinking 25 mA/segment.Applications include TV and CB channel displays.
