DS600

Features: *±0.5°C Accuracy (-20°C to +100°C)*±0.75°C Accuracy Over Entire Temperature Range of(-40°C to +125°C*Requires No External Components*6.45mV/°C Output Gain with 509mV Offset at 0°C*2.7V to 5.5V Supply Voltage Range*User-Programmable Thermostat Function*Shutdown Function Puts Device into a...

product image

DS600 Picture
See larger image
SeekIC No. : 004329169 Detail

DS600: Features: *±0.5°C Accuracy (-20°C to +100°C)*±0.75°C Accuracy Over Entire Temperature Range of(-40°C to +125°C*Requires No External Components*6.45mV/°C Output Gain with 509mV Offset at 0°C*2.7V to ...

DS600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*±0.5°C Accuracy (-20°C to +100°C)
*±0.75°C Accuracy Over Entire Temperature Range of(-40°C to +125°C
*Requires No External Components
*6.45mV/°C Output Gain with 509mV Offset at 0°C
*2.7V to 5.5V Supply Voltage Range
*User-Programmable Thermostat Function
*Shutdown Function Puts Device into a Low- Power Standby Mode
*Exposed Pad 8-Pin SOP Package for Quick Thermal Response


Application


Cold-Junction Thermocouple Compensation
Portable Medical Equipment
Thermally Sensitive Systems that Require a High-
Accuracy Analog-Output Temperature Sensor

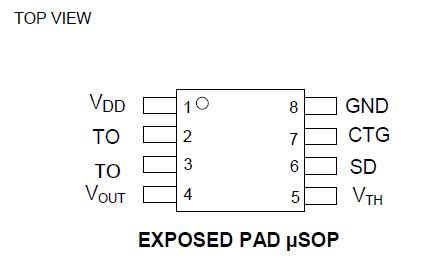

Pinout

Connection Diagram


Specifications

Voltage Range on Any Pin (except CTG) Relative to Ground                          -0.5V to +6.0V
Voltage Range on CTG Relative to Ground                                                      -0.5 to +0.5V
Operating Temperature Range                                                               -40°C to +125°C
Storage Temperature Range                                                                  -55°C to +125°C
Soldering Temperature (10s)                                    +260°C (See IPC/JEDEC J-STD-020A)
Reflow Oven Temperature                                                                                      +220°C


Description

The DS600 is a ±0.5°C accurate analog-output temperature sensor. This accuracy is valid over its entire operating voltage range of 2.7V to 5.5V and the wide temperature range of -20°C to +100°C. The DS600 can also act as a thermostat, with userprogrammable trip points. A shutdown mode enables the DS600 to be placed in a low-power standby state. The DS600 is available in an 8-pin SOP package.
