DS55-0004

Features: • Small Size, Low Profile• Superior Repeatability (Lot-to-Lot Variation)• Industry Standard SOIC-16 SMT Plastic Package• Typical Isolation: 26 dB• Typical Insertion Loss: 0.7 dB• Low Cost• 1 Watt Power HandlingPinoutSpecifications Paramete...

product image

DS55-0004 Picture
See larger image
SeekIC No. : 004329155 Detail

DS55-0004: Features: • Small Size, Low Profile• Superior Repeatability (Lot-to-Lot Variation)• Industry Standard SOIC-16 SMT Plastic Package• Typical Isolation: 26 dB• Typical Ins...

DS55-0004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS55-0004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Small Size, Low Profile
• Superior Repeatability (Lot-to-Lot Variation)
• Industry Standard SOIC-16 SMT Plastic Package
• Typical Isolation: 26 dB
• Typical Insertion Loss: 0.7 dB
• Low Cost
• 1 Watt Power Handling


Pinout

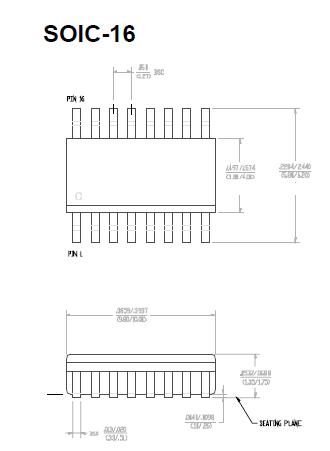

Connection Diagram


Specifications

Parameter Absolute Maximum
Input Power2
Operating Temperature
Storage Temperature

1 W CW

-40°C to +85°C

-65°C to +150°C




Description

M/A-COM's DS55-0004 is an IC-based monolithic power divider using M/A-COM's GMIC technology in a low cost SOIC-16 plastic package. This 5-way power divider is ideally suited for applications where PCB real estate is at a premium and part count reduction and cost are critical. Typical applications include base station switching networks and other cellular equipment, including subscriber units. Available in tape and reel.

The DS55-0004 is fabricated using a passive-integrated circuit process. The process features full-chip passivation for increased performance and reliability.
