DS53-0005

Features: · Small Size and Low Profile· Industry Standard SOIC-8 SMT Plastic Package· Excellent Amplitude and Phase Balance· Superior Repeatability· Typical Insertion Loss: 1.0 dB· Typical Isolation: 18 dB· 1 Watt Power HandlingPinoutSpecifications Parameter Absolute Maximum Input Power...

product image

DS53-0005 Picture
See larger image
SeekIC No. : 004329149 Detail

DS53-0005: Features: · Small Size and Low Profile· Industry Standard SOIC-8 SMT Plastic Package· Excellent Amplitude and Phase Balance· Superior Repeatability· Typical Insertion Loss: 1.0 dB· Typical Isolation...

DS53-0005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS53-0005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Small Size and Low Profile
·  Industry Standard SOIC-8 SMT Plastic Package
·  Excellent Amplitude and Phase Balance
·  Superior Repeatability
·  Typical Insertion Loss: 1.0 dB
·  Typical Isolation: 18 dB
·  1 Watt Power Handling

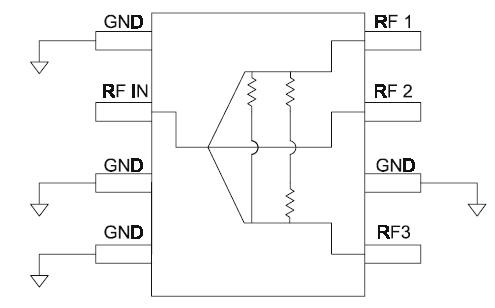

Pinout

Connection Diagram


Specifications

Parameter Absolute Maximum
Input Power2
Operating Temperature
Storage Temperature

1 W CW

-40°C to +85°C

-65°C to +150°C




Description

M/A-COM's DS53-0005 is an IC-based monolithic power divider using M/A-COM's GMIC technology in a low cost SOIC-8 plastic package. This 3-way power divider is ideally suited for applications where small size, low insertion loss, superior phase/ amplitude tracking and low cost are required. Typical applications include personal communication systems and other communication applications where size and PCB real estate are at a premium. Available in tape and reel.

The DS53-0005 is fabricated using a passive-integrated circuit process. The process features full-chip passivation for increased performance and reliability.
