DS34LV87

Features:

 Meets TIA/EIA-422-B (RS-422) and ITU-T V.11 recommendation
  Interoperable with existing 5V RS-422 networks
  Guaranteed V_OD of 2V min over operating conditions
  Balanced output crossover for low EMI (typical within 40 mV of 50% voltage level)
  Low power design (330 W @ 3.3V static)
  ESD 7 kV on cable I/O pins (HBM)
  Industrial temperature range
  Guaranteed AC parameter:
- Maximum driver skew: 2 ns
- Maximum transition time: 10 ns
  Pin compatible with DS26C31
  Available in SOIC packaging

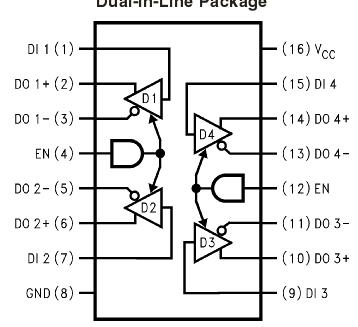

Pinout




Specifications

If Military/Aerospace specified devices are required,please contactthe National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage (V_CC )                                                   -0.5V to +7V
Enable Input Voltage (EN)                                 -0.5V to V_CC + 0.5V
Driver Input Voltage (D_I)                                   -0.5V to V_CC + 0.5V
Clamp Diode Current                                                          ±20 mA
DC Output Current, per pin                                              ±150 mA
Driver Output Voltage(Power Off: DO+, DO-)              -0.5V to +7V
Maximum Package Power Dissipation @+25
M Package                                                                      1226 mW
Derate M Package 9.8 mW/above +25
Storage Temperature Range                                 -65to +150
Lead Temperature Range(Soldering, 4 sec.)                      +260
ESD Ratings(HBM, 1.5k, 100 pF)
Driver Outputs                                                                     7kV
Other Pins                                                                       2.5 kV


Description

The DS34LV87T is a high speed quad differential CMOS driver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS34LV87T features low static I_CC of 100 A max which makes it ideal for battery powered and power conscious applications. The TRI-STATE enable,EN, allows the device to be disabled when the device is not inusetominimizepower.The dual enable scheme allows for flexibility in turning devices on or off.

Protection diodes protect all the driver inputs against elec-trostatic discharge.The driver and enable inputs(DIandEN) are compatible with LVTTL and LVCMOS devices. Differen-tial outputs have the same V_OD (2V) guarantee as the 5V version. The outputs have enhanced ESD Protection provid-ing greater than 7 kV tolerance.
