DS32kHz

Features:

Accurate to ±4 Min/Yr (-40 to +85)
Accurate to ±1 Min/Yr (0 to +40)
Battery Backup for Continuous Timekeeping
V_BAT Operating Voltage: 2.7V to 5.5V with V_CC Grounded
V_CC Operating Voltage: 4.5V to 5.5V
Operating Temperature Range: 0 to +70 (Commercial) -40 to +85 (Industrial)
No Calibration Required
Low-Power Consumption
Surface Mountable Using BGA Package
UL Recognized


Application

GPS Receivers  Telematics  Network Timing and Synchronization in Servers, Routers, Hubs, and Switches Automatic Power Meters

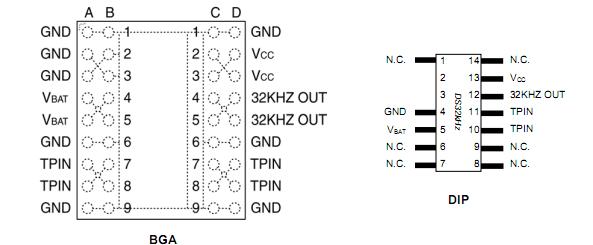

Pinout




Specifications

TVoltage Range on Any Pin Relative to Ground...................... -3.0V to +7.0V
Operating Temperature Range
Commercial ...............................................................................0 to +70
Industrial ...............................................................................-40 to +85
Storage Temperature Range .................................................-40 to +85
Soldering Temperature (BGA).. See IPC/JEDEC J-STD-020A (2x max) (Note 1)
Soldering Temperature, Leads (DIP) .......260 for 10 seconds (Notes 1, 2)

Description

he DS32kHz is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 32.768kHz. This device addresses applications requiring better timekeeping accuracy and can be used to drive the X1 input of most Dallas Semiconductor real-time clocks (RTCs), chipsets, and other ICs containing RTCs. This device is available in commercial (DS32kHz) and industrial (DS32kHz-N) temperature versions.
