DS2282

Features:

• Fully implements the FDL message format as de-scribed in the ANSI document T1.4031989
• Fully implements the maintenance message protocoldescribed in AT&T TR 54016 (1986/89)
• Provides highlevel monitor counts, namely:
Errored Seconds
Severely Errored Seconds
Unavailable Seconds
• Important counts are stored in nonvolatile memory
• Works in conjunction with the DS2283 Enhanced T1Line Card Stik or DS2180A T1 Transceiver
• Simple serial port used to retrieve information andcontrol operation
• Can be used without an external controller
• Connects to a standard 30pin Single InLine con-nector
• Single +5V supply

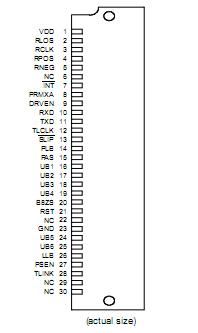

Pinout




Specifications

Voltage on Any Pin Relative to Ground....................0.3V to V_CC
Operating Temperature........................................... 0 to +70
Storage Temperature ................................................  0to 70
Soldering Temperature ................................260 for 10 seconds


Description

The DS2282 completely controls the Facility Data Link(FDL) as described in the Bellcore document TRTSY000194 (Extended Superframe Format InterfaceSpecification December 1987) and the ANSI docu-ment T1.4031989 (Carrier to Carrier Installation DS1Metallic Interface). DS2282 also implements the protocol thatis described in the AT&T publication TR 54016 (Re-quirements for Interfacing DTE to Services EmployingESF 1986/89). In addition it provides a number of im-portant performance parameters involved in monitoringT1 lines such as Errored Seconds, Severely ErroredSeconds, and Unavailable Seconds.
