DS2152

Features:

Complete DS1/ISDN-PRI transceiverfunctionality
Line interface can handle both long and short haultrunks
32-bit or 128-bit crystal-less jitter attenuator
Generates DSX-1 and CSU line build outs
Frames to D4, ESF, and SLC-96Rformats
Dual onboard two-frame elastic store slip buffersthat can connect to asynchronous backplanes up to8.192 MHz
8-bit parallel control port that can be used directlyon either multiplexed or non-multiplexed buses(Intel or Motorola)
Extracts and inserts robbed-bit signaling
Detects and generates yellow (RAI) and blue(AIS) alarms
Programmable output clocks for Fractional T1
Fully independent transmit and receivefunctionality
Integral HDLC controller with 16-byte buffers forthe FDL
Generates and detects in-band loop codes from 1to 8 bits in length including CSU loop codes
Contains ANSI 1's density monitor and enforcer
Large path and line error counters including BPV,CV, CRC6, and framing bit errors
  Pin compatible with DS2154 E1 Enhanced Single-Chip Transceiver
  5V supply; low power CMOS
100-pin 14mm2body LQFP package


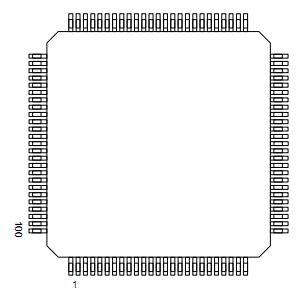

Pinout




Specifications

Voltage on Any Pin Relative to Ground .................... -1.0V to +7.0V
Operating Temperature for DS2152L........................... ...0 to 70
Operating Temperature for DS2152LN ................... ..-40 to +85
Storage Temperature  ............................................ -55 to +125
Soldering Temperature  ................................ .260 for 10 seconds


Description

The DS2152 T1 Enhanced Single-Chip Transceiver contains all of the necessary functions for connectionto T1 lines, whether they be DS-1 long haul or DSX-1 short haul. The clock recovery circuitryautomatically adjusts to T1 lines from 0 feet to over 6000 feet in length. The device DS2152 can generate bothDSX-1 line build outs as well as CSU line build outs of -7.5 dB, -15 dB, and -22.5 dB. The onboard jitterattenuator (selectable to either 32 bits or 128 bits) can be placed in either the transmit or receive datapaths. The framer locates the frame and multiframe boundaries and monitors the data stream for alarms. Itis also used for extracting and inserting robbed-bit signaling data and FDL data. The device DS2152 contains a setof internal registers which the user can access and control the operation of the unit. Quick access via theparallel control port allows a single controller to handle many T1 lines. The device DS2152 fully meets all of thelatest T1 specifications including ANSI T1.403-1995, ANSI T1.231-1993, AT&T TR 62411 (12-90),AT&T TR54016, and ITU G.703, G.704, G.706, G.823, and I.431.
