DS2151

Features: Complete DS1/ISDN-PRI transceiverfunctionality Line interface can handle both long- andshort-haul trunks 32-bit or 128-bit jitter attenuator Generates DSX-1 and CSU line build outs Frames to D4, ESF, and SLC-96R formats Dual onboard two-frame elastic store slipbuffers that connect to ba...

product image

DS2151 Picture
See larger image
SeekIC No. : 004328792 Detail

DS2151: Features: Complete DS1/ISDN-PRI transceiverfunctionality Line interface can handle both long- andshort-haul trunks 32-bit or 128-bit jitter attenuator Generates DSX-1 and CSU line build outs Frames...

DS2151 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS2151
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Complete DS1/ISDN-PRI transceiverfunctionality
Line interface can handle both long- andshort-haul trunks
32-bit or 128-bit jitter attenuator
  Generates DSX-1 and CSU line build outs
  Frames to D4, ESF, and SLC-96R formats
  Dual onboard two-frame elastic store slipbuffers that connect to backplanes up to 8.192MHz
  8-bit parallel control port that can be used oneither multiplexed or non-multiplexed buses
  Extracts and inserts Robbed-Bit signaling
  Detects and generates yellow and blue alarms
  Programmable output clocks for Fractional T1
  Fully independent transmit and receivefunctionality
  Onboard FDL support circuitry
  Generates and detects CSU loop codes
  Contains ANSI one's density monitor andenforcer
  Large path and line error counters includingBPV, CV, CRC6, and framing bit errors
  Pin compatible with DS2153Q E1 Single-Chip Transceiver
  5V supply; low power CMOS
  Industrial grade version (-40 to +85)available (DS2151QN)

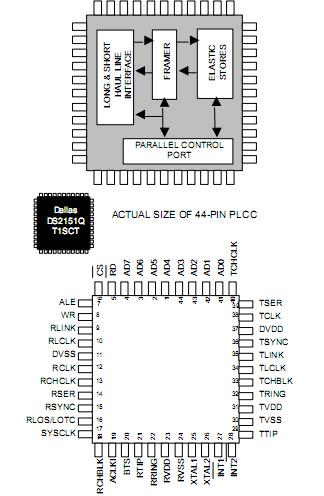

Pinout

Connection Diagram


Specifications

Voltage on Any Pin Relative to Ground  ...............................................-1.0V to +7.0V
Operating Temperature  ............................0to 70 (-40to +85 for DS2151QN)
Storage Temperature ........................................................................ -55to +125
Soldering Temperature  .............................................................260for 10 seconds


Description

The DS2151Q T1 Single-Chip Transceiver (SCT) contains all of the necessary functions for connectionto T1 lines whether they be DS-1 long haul or DSX-1 short haul. The clock recovery circuitryautomatically adjusts to T1 lines from 0 feet to over 6000 feet in length. The device can generate bothDSX-1 line build outs as well as CSU build outs of -7.5 dB, -15 dB, and -22.5 dB.

The DS2151Q onboard jitterattenuator (selectable to either 32 bits or 128 bits) can be placed in either the transmit or receive datapaths. The framer locates the frame and multiframe boundaries and monitors the data stream for alarms.It is also used for extracting and inserting Robbed-Bit signaling data and FDL data. The device DS2151Q contains a set of 64 8-bit internal registers which the user can access to control the operation of the unit. Quickaccess via the parallel control port allows a single micro to handle many T1 lines. The device fully meetsall of the latest T1 specifications including ANSI T1.403-199X, AT&T TR 62411 (12-90), and ITUG.703, G.704, G.706, G.823, and I.431.
