DS2121A

Features: Fully compliant with Ultra2, Ultra3, and Ultra 160 LVD-only SCSI Provides Low Voltage Differential (LVD) termination for 9 signal line pairs 5% tolerance on SE and LVD termination resistanceLow power-down capacitance of 3 pF Onboard thermal shutdown circuitry SCSI bus hot plug compatible...

product image

DS2121A Picture
See larger image
SeekIC No. : 004328783 Detail

DS2121A: Features: Fully compliant with Ultra2, Ultra3, and Ultra 160 LVD-only SCSI Provides Low Voltage Differential (LVD) termination for 9 signal line pairs 5% tolerance on SE and LVD termination resistan...

DS2121A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS2121A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Fully compliant with Ultra2, Ultra3, and Ultra 160 LVD-only SCSI
Provides Low Voltage Differential (LVD) termination for 9 signal line pairs
5% tolerance on SE and LVD termination resistance
Low power-down capacitance of 3 pF
Onboard thermal shutdown circuitry
SCSI bus hot plug compatible


Pinout

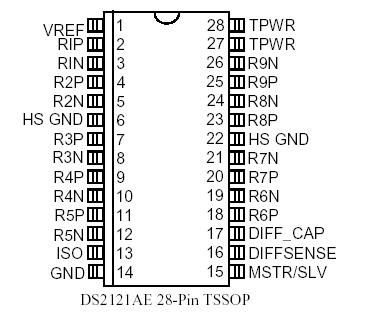

Connection Diagram


Description

The DS2121A LVD SCSI Terminator is a Low Voltage Differential (LVD) terminator. If the device is connected in an LVD-only bus, the DS2121A will use LVD termination. If any SE devices are connected to the bus, the DS2121A will disconnect from the bus. This is accomplished automatically inside the part by sensing the voltage on the SCSI bus DIFFSENS line.

For the LVD termination, the DS2121A integrates two current sources with nine precision resistor strings. Three DS2121A terminators are needed for a wide SCSI bus.
