Features:

Fully compliant with Ultra2, Ultra3, and Ultra 160 LVD-only SCSI
Provides Low Voltage Differential termination for 9 signal line pairs
Auto-selection of LVD termination
5% tolerance on LVD termination resistance
Low power down capacitance of 3 pF
Onboard thermal shutdown circuitry
SCSI bus hot plug compatible

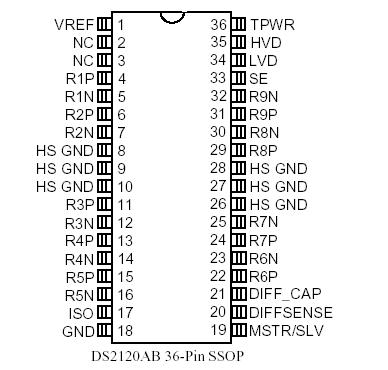

Pinout

Connection Diagram

Description

The DS2120A Ultra3 LVD SCSI Terminator is a Low Voltage Differential (LVD) terminator. If the device is connected in an LVD-only bus, the DS2120A will use LVD termination. If any single-ended (SE) or high-voltage differential (HVD) devices are connected to the bus, the DS2120A will isolate itself from the SCSI bus. This is accomplished automatically inside the part by sensing the voltage on the SCSI bus DIFFSENS line.

For the LVD termination, the DS2120A integrates two current sources with nine precision resistor strings. Three DS2120A terminators are needed for a wide SCSI bus.
