Features:

Fully compliant with Ultra3, Ultra160, Ultra320, and Ultra2 (LVD only) SCSI
Provides low-voltage differential (LVD) termination for nine signal line pairs
Zero-temperature coefficient-termination resistors
Auto-select of LVD termination
5% tolerance on LVD termination resistance
Low power-down capacitance of 3pF
Built- in mode change filter/delay
On-board thermal -shutdown circuitry
SCSI bus hot-plug compatible

Application

Raid Systems
SCSI Host Bus Adapter Cards (HBA)
Servers
SCSI Cables
Network Attached Storage (NAS)
Storage Area Networks (SANs)

Pinout

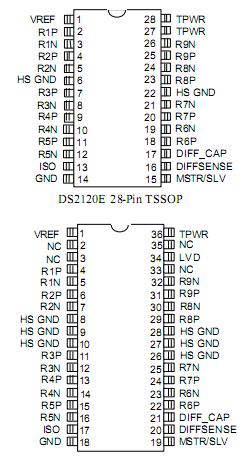

Connection Diagram

Description

The DS2120 Ultra3 LVD SCSI terminator is a low-voltage differential (LVD) terminator. If the device isconnected in an LVD-only bus, the DS2120 uses LVD termination. If any single-ended (SE) or high-voltage differential (HVD) devices are connected to the bus, the DS2120 disconnects from the bus. This is accomplished inside the part automatically by sensing the voltage on the SCSI bus DIFFSENS line.

For the LVD termination, the DS2120 integrates two current sources with nine precision resistor strings. Three DS2120 terminators are needed for a wide SCSI bus.
