Features:

` Four independent, digitally controlled 64- position potentiometers
` Two interface control options
  - 5-wire serial
  - 2-wire addressable
` Standard resistance values
  - DS1844-010 10 k
  - DS1844-050 50 k
  - DS1844-100 100 k
` Mixed resistor value combinations (contact factory for availability)
` Operating Temperature Range
  - Industrial: -40°C to +85°C



Pinout

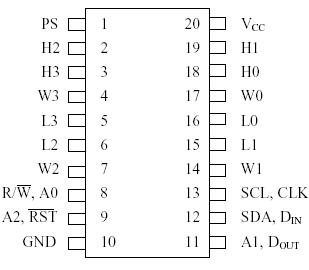

  Connection Diagram


Specifications

Voltage on Any Pin Relative to Ground ..............-1.0V to +7.0V
Operating Temperature ...................................-40°C to +85°C
Storage Temperature ....................................-55°C to +125°C
Soldering Temperature ..........................260°C for 10 seconds

* This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.




Description

The DS1844 Quad Digital Potentiometer is a four-channel, digitally controlled linear potentiometer. Each potentiometer is comprised of 63 equi-resistive sections and has three terminals accessible to the user. These include the high side terminals, HX, the wiper terminals, WX, and the low-side terminals, LX. The wiper position on the resistor ladder is selected via an 8-bit register value. Communication and control of the device are supported by two types of serial interface. These include a 5-wire I/O shift register interface and a 2-wire addressable interface.

The DS1844 is available in standard 10 k, 50 k, and 100 k versions. Mixed resistor combinations are also available through custom setups. The DS1844 is specified to operate over the industrial temperature range: -40°C to +85°C. Packages for the DS1844 include 20-pin DIPs, SOICs, and TSSOPs.
