Product Details

Description

Features:

Automatically restarts a microprocessor after power failure
Maintains reset for 150 ms after V_CC returns to an in-tolerance condition
Reduces need for discrete components
Precision temperature-compensated voltage reference and voltage sensor
Low-cost TO-92 or space saving surface mount SOT-23 packages available
Push-Pull output for low current operation
Operating temperature -40°C to +85°C

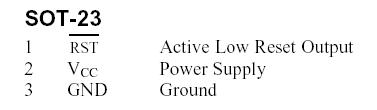

Pinout

Connection Diagram

Specifications

Voltage on V_CC Pin Relative to Ground                 -0.5V to +7.0V
Voltage on RST Relative to Ground                       -0.5V to V_CC +0.5V
Operating Temperature                                        -40°C to +85°C
Storage Temperature                                           -55°C to +125°C
Soldering Temperature                                         260°C for 10 seconds

Description

The DS1810 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (V_CC). When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state. When V_CC returns to an in-tolerance condition, the reset signal is kept in the active state for approximately 150 ms to allow the power supply and processor to stabilize.
