DS1687

Features: Incorporates Industry-Standard DS1287 PC Clock plus Enhanced Features Such as:* Y2K Compliant* +3V or +5V Operation* 64-Bit Silicon Serial Number* Power-Control Circuitry Supports System Power- On from Date/Time Alarm or Key Closure* 32kHz Output for Power Management* Crystal-Select Bit ...

product image

DS1687 Picture
See larger image
SeekIC No. : 004328637 Detail

DS1687: Features: Incorporates Industry-Standard DS1287 PC Clock plus Enhanced Features Such as:* Y2K Compliant* +3V or +5V Operation* 64-Bit Silicon Serial Number* Power-Control Circuitry Supports System P...

DS1687 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS1687
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Incorporates Industry-Standard DS1287 PC Clock plus Enhanced Features Such as:
* Y2K Compliant
* +3V or +5V Operation
* 64-Bit Silicon Serial Number
* Power-Control Circuitry Supports System Power-
   On from Date/Time Alarm or Key Closure
* 32kHz Output for Power Management
* Crystal-Select Bit Allows RTC to Operate with
   6pF or 12.5pF Crystal
* SMI Recovery Stack
* 242 Bytes Battery-Backed NV RAM
* Auxiliary Battery Input
* RAM Clear Input
* Century Register
* Date Alarm Register
* Compatible with Existing BIOS for Original
   DS1287 Functions
* Available as Chip (DS1685) or Stand-Alone
   Encapsulated DIP (EDIP) with Embedded
   Battery and Crystal (DS1687)
* Timekeeping Algorithm Includes Leap-Year
   Compensation Valid Through 2099
* Underwriters Laboratory (UL) Recognized


Application

Embedded Systems
Utility Meters
Security Systems
Network Hubs, Bridges, and Routers

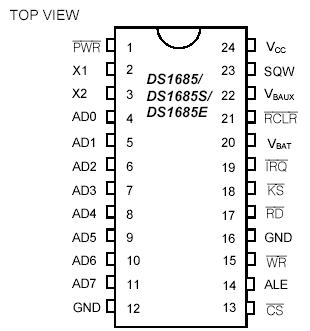

Pinout

Connection Diagram
