DS15MB200

Supply Voltage (V_DD) ................−0.3V to +4.0V
CMOS Input Voltage -..............0.3V to (V_DD+0.3V)
LVDS Receiver Input Voltage ..........-0.3V to (V_DD+0.3V)
LVDS Driver Output Voltage ..........-0.3V to (V_DD+0.3V)
LVDS Output Short Circuit
Current ...........................+40 mA
Junction Temperature ...................+150°C
Storage Temperature.............. −65°C to +150°C
Lead Temperature (Solder, 4sec) ..............260°C
Max Pkg Power Capacity @ 25°C T...............5.2W
Thermal Resistance ( _JA) ..................24°C/W
Package Derating above............ +25°C 41.7mW/°C
ESD Last Passing Voltage
HBM, 1.5k, 100pF........................ 8kV
LVDS pins to GND only...................... 15kV
EIAJ, 0, 200pF.......................... 250V
CDM................................1000V
Note 6: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. National does not recommend operation of products outside of recommended operation conditions.

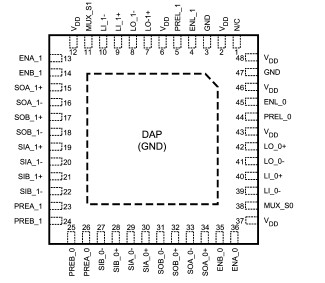

The DS15MB200 is a dual-port 2 to 1 multiplexer and 1 to 2 repeater/buffer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on National's 10-, 16-, and 18- bit Bus LVDS SerDes, or to CML or LVPECL signals.

The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial -40 to +85°C temperature range.
