DS1371

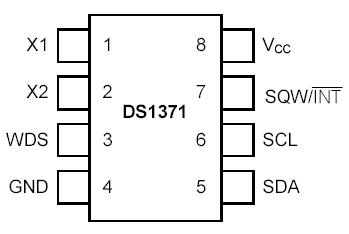

Voltage Range on V_CC Pin Relative to Ground  . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to +6.0V
Voltage Range on SDA, SCL, and WDS Relative to Ground  . . . . . . . . . . . .-0.3V to V_CC +0.5V
Operating Temperature Range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -40°C to +85°C
Storage Temperature Range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-55°C to +125°C
Soldering Temperature  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See IPC/JEDEC J-STD-020A
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can affect device reliability.

The DS1371 is a 32-bit binary counter that is designed to continuously count time in seconds. An additional counter DS1371 that can generate a periodic alarm or serve as a watchdog timer is also provided. If enabled as a watchdog timer, the watchdog strobe input pin provides a hardware reset of the counter. If disabled, this counter DS1371 can be used as 3 Bytes of generalpurpose RAM. A configurable output can be used as an interrupt or provide a square wave at one of four selectable frequencies. The device is programmed serially through a 2-wire bidirectional bus.
