DS1216H

Series: -
Voltage - Supply: 4.5 V ~ 5.5 V
Operating Temperature: 0°C ~ 70°C
Packaging: Tube
Manufacturer: Maxim Integrated Products
Controller Type: Smartwatch RAM
Package / Case: 32-DIP (0.600", 15.24mm) Socket
Supplier Device Package: 32-DIP Socket


Features:

• Converts standard 512K x 8 CMOS static RAMs into nonvolatile memory
• Embedded lithium energy cell maintains watch information and retains RAM data
• Watch function is transparent to RAM operation
• Keeps track of hundredths of seconds, seconds, minutes, hours, days, date of the month, months, and years
• Month and year determine the number of days in each month; leap year compensation valid up to 2100
• Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time
• Proven gastight socket contacts
• Full ±10% operating range
• Operating temperature range 0°C to 70°C
• Accuracy is better than ±1 min./month @ 25°C

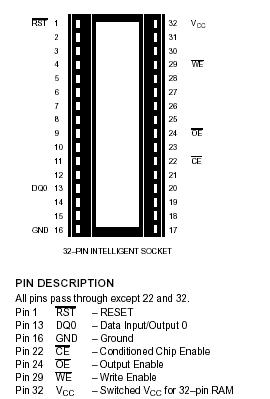

Pinout




Description

The DS1216H SmartWatch/RAM 4M is a 32pin, 600 MIL wide DIP socket with a builtin CMOS watch function, a nonvolatile RAM controller circuit, and an embedded lithium energy source. DS1216H accepts 512K x 8 JEDEC bytewide CMOS static RAM. When the socket is mated with a CMOS SRAM, DS1216H provides a complete solution to problems associated with memory volatility and uses a common energy source to maintain time and date. A key feature of the DS1216H is that the watch function remains transparent to the RAM.

See the DS1216B SmartWatch/RAM 16/64K data sheet for technical details.

Parameters:

Technical/Catalog Information	DS1216H
Vendor	Dallas Semiconductor
Category	Integrated Circuits (ICs)
Controller Type	Smartwatch RAM
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	32-SOIC
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	DS1216H DS1216H
