Series: -
Voltage - Supply: 4.5 V ~ 5.5 V
Operating Temperature: 0°C ~ 70°C
Packaging: Tube
Manufacturer: Maxim Integrated Products
Controller Type: Smartwatch RAM
Package / Case: 32-DIP (0.600", 15.24mm) Socket
Supplier Device Package: 32-DIP Socket
Features: Converts standard 8K x 8, 32K x 8, and 512K x 8 CMOS static RAMs into nonvolatile memory
Embedded lithium energy cell maintains watch information and retains RAM data
Watch function is transparent to memory operation
Keeps track of hundredths of seconds, seconds, minutes, hours, days, date of the month, months, and years
Month and year determine the number of days in each month; leap year compensation valid up to 2100
Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time
Proven gastight socket contacts
Full ±10% operating range
Operating temperature range 0°C to 70°C
Accuracy is better than ±1 minute/month @ 25°CPinout

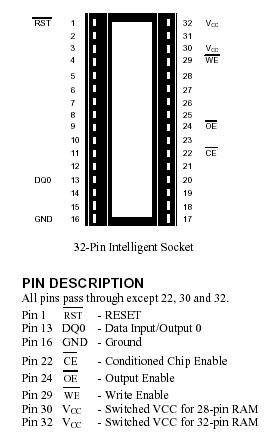

DescriptionThe DS1216D SmartWatch/RAM 256K/1M is a 32pin, 600-mil wide DIP socket with a builtin CMOS watch function, a nonvolatile RAM controller circuit, and an embedded lithium energy source. DS1216D accepts either an 8K x 8, 32K x 8, 128K x 8, or 512K x 8 JEDEC bytewide CMOS static RAM. When the socket is mated with a CMOS SRAM,DS1216D provides a complete solution to problems associated with memory volatility and uses a common energy source to maintain time and date. A key feature of the DS1216D is that the watch function remains transparent to the RAM.
See the DS1216B SmartWatch/RAM 16/64K data sheet for technical details.
Parameters: | Technical/Catalog Information | DS1216D |
| Vendor | Dallas Semiconductor |
| Category | Integrated Circuits (ICs) |
| Controller Type | Smartwatch RAM |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Package / Case | 32-DIP |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | DS1216D
DS1216D
|
DS1216D Data Sheet
