DS1135

· All-silicon timing circuit
· Three independent buffered delays
· Stable and precise over temperature and  voltage
· Leading and trailing edge precision preserve the input symmetry

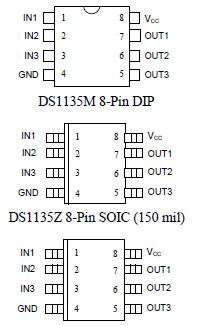

· Standard 8-pin DIP and 8-pin SOIC (150 mil)
· Vapor phasing, IR and wave solderable
· Available in Tape and Reel
·Commercial and industrial temperature range available; see order info table
· 5V operation (for 3V operation, see part number DS1135L)
· Recommended replacement for DS1013 and DS1035

The DS1135 series is a low-power, +5-volt high-speed version of the popular DS1013 and DS1035.

The DS1135 series of delay lines have three independent logic buffered delays in a single package.  The device is Dallas Semiconductor!s fastest 3-in-1 delay line.  DS1135 is available in a standard 8-pin DIP an 150 mil 8-pin Mini-SOIC, as well as an 8-pin, 118 mil uSOP.

DS1135 features precise leading and trailing edge accuracy. DS1135 has the inherent reliability of an all- silicon delay line solution.  Each output is capable of driving up to 10 LS loads.

Standard delay values are indicated in Table 1.  Customers may contact Dallas Semiconductor at (972) 371-4348 for further information on custom delay values.
