DS1110

Features:

All-Silicon, 5V, 10-Tap Delay Line
Improved, Drop-In Replacement for the DS1010
10 Taps Equally Spaced
Delays are Stable and Precise
Leading- and Trailing-Edge Accuracy
Delay Tolerance ±5% or ±2ns, whichever is Greater, at 5V and +25°C
Economical
Auto-Insertable, Low Profile
Low-Power CMOS
TTL/CMOS Compatible
Vapor Phase, IR, and Wave Solderable
Fast-Turn Prototypes
Delays Specified Over Commercial and Industrial Temperature Ranges
Custom Delays Available
Standard 16-Pin SO or 14-Pin TSSOP


Application

Communications Equipment
Medical Devices
Automated Test Equipment
PC Peripheral Devices

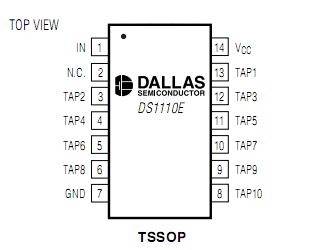

Pinout




Description

The DS1110 delay line is an improved replacement for the DS1010. It has ten equally spaced taps providing delays from 5ns to 500ns. The devices are offered in astandard 16-pin SO or 14-pin TSSOP. The DS1110 series delay lines provide a nominal accuracy of ±5% or ±2ns,whichever is greater, at 5V and +25°C. The DS1110 reproduces the input logic state at the tap 10 output after a fixed delay as specified by the dash number extension of the part number. The DS1110 is designed to produce both leading- and trailing-edge delays with equal preci-sion. Each tap is capable of driving up to ten 74LS type loads. Dallas Semiconductor can customize standard products to meet special needs.
