DS1035

The DS1035 series is a low-power +5-volt high-speed version of the popular DS1013 and complements the DS1033 +3.3 Volt version.

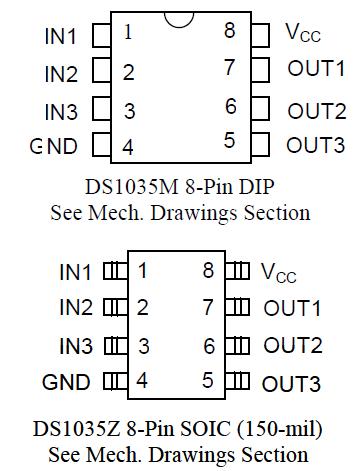

The DS1035 series of delay lines have three independent logic buffered delays in a single package. The device is Dallas Semiconductor's fastest 3-in-1 delay line. It is available in a standard 8-pin DIP and 150 Mil 8-pin Mini-SOIC.

The DS1035 features precise leading and trailing edge accuracies. It has the inherent reliability of an allsilicon delay line solution. The DS1035's initial tolerance is ±1.5 or ±2.0 ns with an additional tolerance over temperature and voltage of ±1.0 ns or ±1.5 ns, depending on the delay value. Each output is capable of driving up to 10 LS loads.

Standard delay values are indicated in Table 1. Customers may contact Dallas Semiconductor at (982) 371-4348 for further information.
