DS1033

The DS1033 series is a low-power +3.3 Volt version of the DS1035. It is characterized for operation over the range of 2.7V to 3.6V.

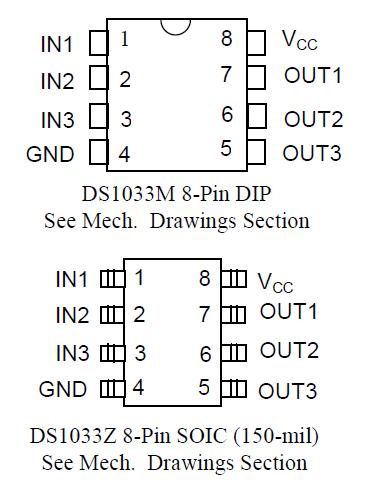

The DS1033 series of delay lines have three independent logic buffered delays in a single package. It is available in a standard 8-pin DIP, 150-mil 8-pin mini-SOIC.

DS1033  features precise leading and trailing edge accuracies. It has the inherent reliability of an allsilicon delay line solution. The DS1033's nominal tolerance is ±1.5 ns and an additional tolerance over temperature and voltage of ±1.0 ns for the faster delays. Detailed specifications are shown in Table 1.

Standard delay values are indicated in Table 1. Customers may contact Dallas Semiconductor at (972) 371-4348 for further information.
