Features:

• 16-bit input capture (4 channels) Detects rising, falling, or both edges. 16-bit capture register × 4 Pin input
   edge detection latches the 16-bit free-run timer counter value, and generates an interrupt request.
• 16-bit reload timer (2 channels) 16-bit reload timer operation (select toggle output or one-shot output)
   Event  count function selection provided

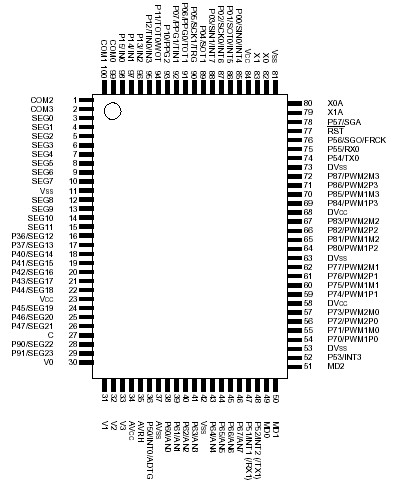

Pinout




Specifications

Parameter	Symbol	Rating		Unit	Remarks
		Min.	Max.
Power supply voltage	VCC	VSS - 0.3	VSS + 6.0	V
	AVCC	VSS - 0.3	VSS + 6.0	V	AVCC = VCC*1
	VAVRH	VSS - 0.3	VSS + 6.0	V	AVCC VAVRH
	DVCC	VSS - 0.3	VSS + 6.0	V	DVCC = VCC*1
Input voltage	VI	VSS - 0.3	VCC + 0.3	V
Output voltage	VO	VSS - 0.3	VCC + 0.3	V
Clamp current	ICLAMP	-2.0	2.0	mA
"L"level maximum output current*2	IOL1	-	15	mA	Other than P70-P77, P80-P87
	IOL2	-	40	mA	P70-77, P80-87
"L"level average output current*3	IOLAV1	-	4	mA	Other than P70-P77, P80-P87
	IOLAV2	-	30	mA	P70-77, P80-87
"L"level maximum total output current	IOL1	-	100	mA	Other than P70-P77, P80-P87
	IOL2	-	330	mA	P70-77, P80-87
"L"level average total output current	IOLAV1	-	50	mA	Other than P70-P77, P80-P87
	IOLAV2	-	250	mA	P70-77, P80-87
"H"level maximum output current	IOH1*2	-	-15	mA	Other than P70-P77, P80-P87
	IOH2*2	-	-40	mA	P70-77, P80-87
"H"level average output current	IOHAV1*3	-	-4	mA	Other than P70-P77, P80-P87
	IOHAV2*3	-	-30	mA	P70-77, P80-87
"H"level maximum total output current	IOH1	-	-100	mA	Other than P70-P77, P80-P87
	IOH2	-	-330	mA	P70-77, P80-87
"H"level average total output current	IOHAV1*4	-	-50	mA	Other than P70-P77, P80-P87
	IOHAV2*4	-	-250	mA	P70-77, P80-87
Power consumption	PD	-	500	mW
Operating temperature	TA	-40	+105
Storage temperature	TSTG	-55	+150

*1 : Care must be taken to ensure that AVCC and DVCC do not exceed V_CC at power-on etc.
*2 : Maximum output current is defined as the peak value of the current of any one of the corresponding pins.
*3 : Average output current is defined as the value of the average current flowing over 100 ms at any one of the
       corresponding pins. The "average value" can be calculated from the formula of "operating current" times
      "operating factor".
*4 : Average total output current is defined as the value of the average current flowing over 100 ms at all of the
       corresponding pins. The "average value" can be calculated from the formula of "operating current" times
      " operating factor".


Description

The FUJITSU MB90420G/5G (A) Series DS07-13711-1E is a 16-bit general purpose high-capacity microcontroller designed for vehicle meter control applications etc.

The instruction set retains the same AT architecture as the FUJITSU original F2MC-8L and F2MC-16L series, with further refinements including high-level language instructions, expanded addressing mode, enhanced (signed) multipler-divider computation and bit processing.

In addition, A 32-bit accumulator of the DS07-13711-1E is built in to enable long word processing.
