Features: • F2MC-8FX CPU core
Instruction set optimized for controllers
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instruction
• Bit manipulation instructions etc.
• Clock
• Main clock
• Main PLL clock
• Sub clock (for dual clock product)
• Sub PLL clock (for dual clock product)
• Timer
• 8/16-bit compound timer × 2 channels
• 8/16-bit PPG × 2 channels
• 16-bit PPG
• Timebase timer
• Watch prescaler (for dual clock product)
(Continued)
• LIN-UART
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• UART/SIO
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• I2C*
Built-in wake-up function
• External interrupt
• Interrupt by edge detection (rising, falling, or both edges can be selected)
• Can be used to recover from low-power consumption (standby) modes.
• 8/10-bit A/D converter
8-bit or 10-bit resolution can be selected
• Low-power consumption (standby) mode
• Stop mode
• Sleep mode
• Watch mode (for dual clock product)
• Timebase timer mode
• I/O port
• The number of maximum ports
• Single clock product : 39 ports
• Dual clock product : 37 ports
• Configuration
• General-purpose I/O ports (N-ch open drain) : 2 ports
• General-purpose I/O ports (CMOS) : Single clock product : 37 ports
Dual clock product : 35 ports
• Programmable input voltage levels of port
Automotive input level / CMOS input level / hysteresis input level
• Flash memory security function
Protects the content of Flash memory (Flash memory device only)

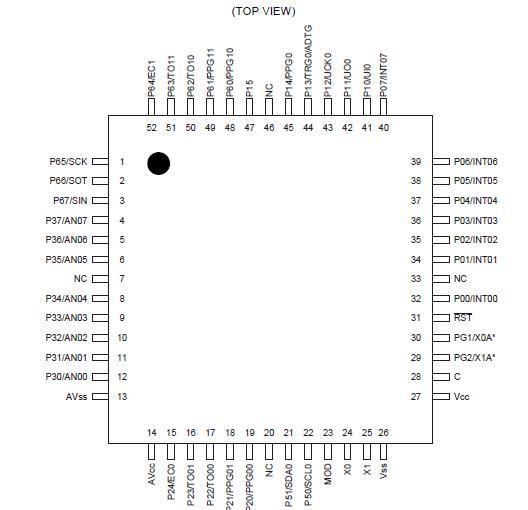

* : Purchase of Fujitsu I2C components conveys a license under the Philips I2C Patent Rights to use, these components in an I2C system provided that the system conforms to the I2C Standard Specification as defined by Philips.Pinout
Specifications
| Parameter |
Symbol |
Rating |
Unit |
Remarks |
| Min |
Max |
| Power supply voltage*1 |
Vcc
AVcc |
Vss - 0.3 |
Vss + 6.0 |
V |
*2 |
| Input voltage*1 |
VI |
Vss - 0.3 |
Vss + 6.0 |
V |
*3 |
| Output voltage*1 |
VO |
Vss - 0.3 |
Vss + 6.0 |
V |
*3 |
| Maximum clamp current |
ICLAMP |
-2.0 |
+ 2.0 |
mA |
Applicable to pins*4 |
Total maximum clamp
current |
|ICLAMP| |
- |
20 |
mA |
Applicable to pins*4 |
"L" level maximum
output current |
IOL1 |
- |
15 |
mA |
Other than P00 to P07 |
| IOL2 |
15 |
P00 to P07 |
"L" level average
current |
IOLAV1 |
- |
4 |
mA |
Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin) |
| IOLAV2 |
12 |
P00 to P07
Average output current =
operating current * operating ratio
(1 pin) |
"L" level total maximum
output current |
IOL |
- |
100 |
mA |
|
"L" level total average
output current |
IOLAV |
- |
50 |
mA |
Total average output current =
operating current * operating ratio
(Total of pins) |
"H" level maximum
output current |
IOH1 |
- |
-15 |
mA |
Other than P00 to P07 |
| IOH2 |
-15 |
P00 to P07 |
"H" level average
current |
IOHAV1 |
- |
-4 |
mA |
Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin) |
| IOHAV2 |
-8 |
P00 to P07
Average output current =
operating current * operating ratio
(1 pin) |
"H" level total maximum
output current |
IOH |
- |
-100 |
mA |
|
"H" level total average
output current |
IOHAV |
- |
-50 |
mA |
Total average output current =
operating current * operating ratio
(Total of pins) |
| Power consumption |
PD |
- |
320 |
mW |
|
| Operating temperature |
TA |
-40 |
+ 85 |
°C |
|
| Storage temperature |
Tstg |
- 55 |
+ 150 |
°C |
|
*1 : The parameter is based on AVSS = VSS = 0.0 V.
*2 : Apply equal potential to AVcc and Vcc.
*3 : VI and Vo should not exceed VCC + 0.3 V. VI must not exceed the rating voltage. However, if the maximum current to/from an input is limited by some means with external components, the ICLAMP rating supersedes the VI rating.
*4 : Applicable to pins : P00 to P07, P10 to P15, P20 to P24, P30 to P37, P60 to P67
• Use within recommended operating conditions.
• Use at DC voltage (current).
• +B signal is an input signal that exceeds VCC voltage. The + B signal should always be applied a limiting resistance placed between the + B signal and the microcontroller.
• The value of the limiting resistance should be set so that when the + B signal is applied the input current to the microcontroller pin does not exceed rated values, either instantaneously or for prolonged periods.
• Note that when the microcontroller drive current is low, such as in the power saving modes, the +B input potential may pass through the protective diode and increase the potential at the VCC pin, and this affects other devices.
• Note that if the + B signal is inputted when the microcontroller power supply is off (not fixed at 0 V), the power supply is provided from the pins, so that incomplete operation may result.
• Note that if the + B input is applied during power-on, the power supply is provided from the pins and the resulting power supply voltage may not be sufficient to operate the power-on reset.
• Care must be taken not to leave the + B input pin open.
• Sample recommended circuits :
DescriptionThe MB95110M series DS07-12611-1E is general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the DS07-12611-1E contain a variety of peripheral functions.
Note : F2MC is the abbreviation of FUJITSU Flexible Microcontroller.
