Product Details

Description



Features:

• Wide frequency controllable range (Over than ±2000 ppm)
• High carrier noise ratio
• Excellent temperature stability
• CMOS output level
• Compact package (8×11 × 2.6 mm)
• Surface mountable package (SMD)

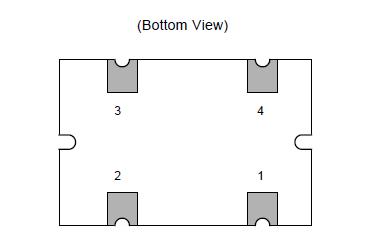

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Supply voltage VCC 0.5 +7.0 V
Control voltage VIN 0.5 +7.0 V
Output voltage VOUT 0.5 VCC +0.5 V
Output current IOUT 25 +25 mA
Operating temperature Ta 10 +70
Storage temperature Tstg 40 +100



Description

The DS04-21710-1E of VCO (Voltage Controlled Oscillator) apply to the frequency range 6 to 30 MHz. These VCOs have a high stability and wide controllable frequency ranges using a LiTaO3 piezoelectric single crystal with high electromechanical coupling coefficient. Output level applies to CMOS type for digital interface.
