Product Details

Description



Features:

• Wide frequency controllable range (Over than ±2000 ppm)
• High carrier noise ratio
• Excellent temperature stability
• CMOS output level
• High reliability due to hermetic seal

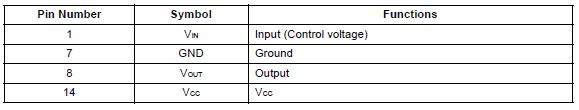

Pinout

Connection Diagram Connection Diagram




Specifications

Parameter Symbol Rating Unit
Power supply voltage VCC 0.5 to +7.0 V
Control voltage VIN 0.5 to +7.0 V
Operating temperature Ta 10 to +70 °C
Storage temperature Tstg 40 to +100 °C
Frequency range - +4 to +30 MHz



Description

The M2 series DS04-21709-1E(F100) of VCO (Voltage Controlled Oscillator) apply to the frequency range 4-30 MHz.The M2 series of VCO have a high reliability and wide controllable frequency ranges using a LiTaO3 piezoelectricsingle crystal with high electromechanical coupling coefficient. Output level applies to CMOS type for digital interface
