Features:

• Various package options Three types of QFP packages (1 mm, 0.65 mm, or 0.5 mm lead pitch) SDIP packages
• High-speed processing at low voltage Minimum execution time: 0.4 ms/3.5 V, 0.8 ms/2.7 V
• F2MC-8L family CPU core


Pinout

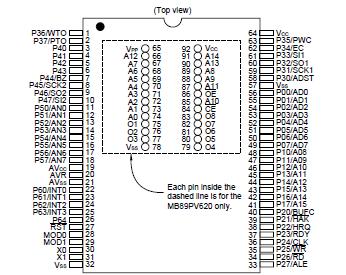

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Remarks
Min.
Max.
Power supply voltage
VCC
AVCC
VSS 0.3
VSS + 7.0
V
*1
A/D converter reference input
voltage
AVR
VSS 0.3
VSS + 7.0
V
AVR must not exceed AVCC + 0.3
V.
Input voltage
VI
VSS 0.3
VCC + 0.3
V
Except P40 to P47*2
VI2
VSS 0.3
VSS + 7.0
V
P40 to P47
Output voltage
VO
VSS 0.3
VCC + 0.3
V
Except P40 to P47*2
VO2
VSS 0.3
VSS + 7.0
V
P40 to P47
"L" level maximum output
current
IOL
-
20
mA
Average value (operating
current ´ operating rate)
"L" level average output current
IOLAV
-
4
mA
"L" level total maximum output
current
IOL
-
100
mA
Average value (operating
current ´ operating rate)
"L" level total average output
current
IOLAV
-
40
mA
"H" level maximum output
current
IOH
-
-20
mA
Average value (operating
current ´ operating rate)
"H" level average output current
IOHAV
-
-4
mA
"H" level total maximum output
current
IOH
-
-50
mA
Average value (operating
current ´ operating rate)
"H" level total average output
current
IOHAV
-
-20
mA
Power consumption
PD
300
mW
Operating temperature
TA
-40
+85
°C
Storage temperature
Tstg
-55
+150
°C
*1: Use AVCC and VCC set to the same voltage. Take care so that AVCC does not exceed VCC, such as when power is turned on.
*2: VI and VO must not exceed VCC + 0.3 V.




Description

The DS0-12534-4E has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.

In addition to the F2MC-8L CPU core which can operate at low voltage but at high speed, the DS0-12534-4E contain a variety of peripheral functions such as timers, serial interfaces, an A/D converter, and an external interrupt.

The DS0-12534-4E is applicable to a wide range of applications from consumer products to industrial equipment, including portable devices.

*: F2MC stands for FUJITSU Flexible Microcontroller.
