Features:

` HIGH OUTPUT CURRENT: 230mA
` SINGLE SUPPLY OPERATION: 5V
` 10MHz BANDWIDTH: 6Vp-p into 15W
` VERY LOW THD AT HIGH POWER: 81dBc at 6Vp-p, 100kHz, 100W
` FIXED DIFFERENTIAL GAIN: 3V/V


Application

· DSL TWISTED PAIR LINE DRIVER
· COMMUNICATIONS LINE DRIVER
· TWISTED-PAIR CABLE DRIVER


Pinout

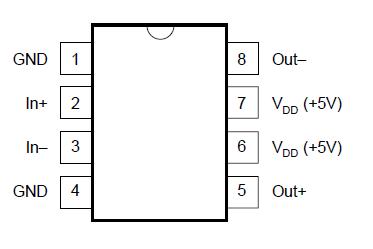

Connection Diagram


Specifications

Analog Inputs: Current .............................................±100mA, Momentary
                                                                                  ±10mA, Continuous
                       Voltage ..................................... GND 0.3V to VDD +0.2V
Analog Outputs Short Circuit to Ground (+25°C) .....................Momentary
Analog Outputs Short Circuit to VDD (+25°C) ..........................Momentary
VDD to GND ...........................................................................0.3V to 6V
Junction Temperature ...................................................................+150°C
Storage Temperature Range ....................................... 40°C to +125°C
Lead Temperature (soldering, 3s) ................................................. +260°C
Power Dissipation .................................... (See Thermal/Analysis Discussion)


Description

The DRV1101 is fixed gain differential line driver designed for very low distortion operation when driving DSL line transformers. It is designed for use as the upstream line driver for ADSL G.Lite, and as both upstream and downstream line drivers in CAP systems. Operating on a single 5V supply, the DRV1101 can supply up to 230mA peak output current. The output voltage can swing up to 9.5Vp-p on a single 5V supply. In ADSL G.Lite applications, DRV1101 can supply up to 10dBm average line power with a crest factor of 5.3 for a peak line power delivered of approximately 25dBm. It is packaged in a 8-lead SOIC.
