Features: ` HIGH OUTPUT CURRENT: 230mA` SINGLE SUPPLY OPERATION: 5V` 5MHz BANDWIDTH: 6Vp-p into 15W` VERY LOW THD AT HIGH POWER: 72dBc at 6Vp-p, 100kHz, 100W` LOW QUIESCENT CURRENT: 11mA` FIXED DIFFERENTIAL GAIN: 3V/VApplication· xDSL TWISTED PAIR LINE DRIVER· COMMUNICATIONS LINE DRIVER· TRANSFORM...

product image

DRV1100 Picture
See larger image
SeekIC No. : 004328291 Detail

DRV1100: Features: ` HIGH OUTPUT CURRENT: 230mA` SINGLE SUPPLY OPERATION: 5V` 5MHz BANDWIDTH: 6Vp-p into 15W` VERY LOW THD AT HIGH POWER: 72dBc at 6Vp-p, 100kHz, 100W` LOW QUIESCENT CURRENT: 11mA` FIXED DIFF...

DRV1100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DRV1100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH OUTPUT CURRENT: 230mA
` SINGLE SUPPLY OPERATION: 5V
` 5MHz BANDWIDTH: 6Vp-p into 15W
` VERY LOW THD AT HIGH POWER: 72dBc at 6Vp-p, 100kHz, 100W
` LOW QUIESCENT CURRENT: 11mA
` FIXED DIFFERENTIAL GAIN: 3V/V


Application

· xDSL TWISTED PAIR LINE DRIVER
· COMMUNICATIONS LINE DRIVER
· TRANSFORMER DRIVER
· SOLENOID DRIVER
· HIGH POWER AUDIO DRIVER
· CRT YOKE DRIVER


Pinout

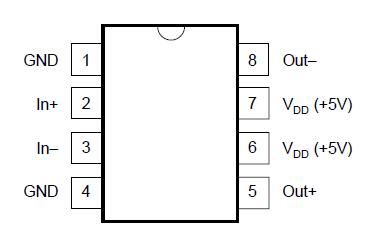

Connection Diagram


Specifications

Analog Inputs: Current ..............................................  ±100mA, Momentary
                                                                                     ±10mA, Continuous
                      Voltage ....................................... GND   0.3V to VDD +0.2V
Analog Outputs Short Circuit to Ground (+25°C) .....................   Momentary
Analog Outputs Short Circuit to VDD (+25°C) ...........................  Momentary
VDD to GND ............................................................................ 0.3V to 6V
Junction Temperature ...................................................................  +150°C
Storage Temperature Range ..........................................40°C to +125°C
Lead Temperature (soldering, 3s) .................................................   +260°C
Power Dissipation .....................................  (See Thermal/Analysis Discussion)


Description

The DRV1100 is fixed gain differential line driver designed for very low harmonic distortion at the high powers required of xDSL line interface standards. Operating on a single +5V supply, it can deliver 230mA peak output current and 9.5Vp-p differential output voltage swing. This high output power on a single +5V supply makes the DRV1100 an excellent choice for the xDSL applications that require up to 17dBm power onto the line with high crest factors. The DRV1100 is available in both 8-pin plastic DIP and SO-8 packages.
