DRQ127-100-R, US $ .89-1.28 , Cooper Bussmann, DRQ127-100-R DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 001180559 Detail

DRQ127-100-R: Power Inductors 10uH 11.2A 0.0172ohms

DRQ127-100-R Data Sheet

US $ .89~1.28 / Piece | Get Latest Price

Part Number:: DRQ127-100-R
Mfg:: Cooper Bussmann
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~350

Unit Price
$1.28
$.97
$.89
$.89

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

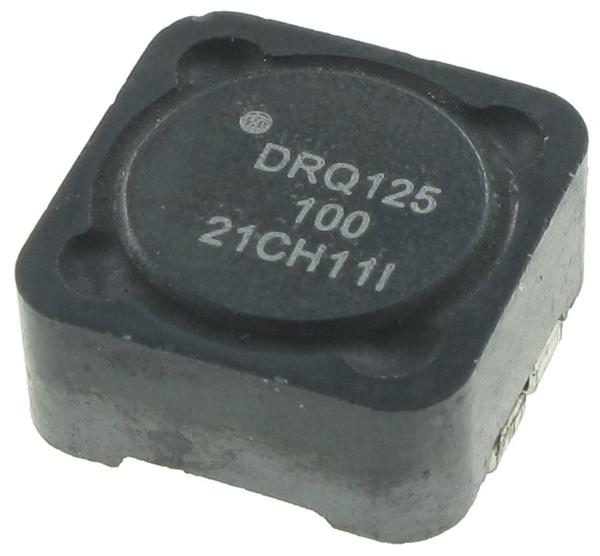

DRQ125-100-R evaluate
US $.49 - 1.18 / Piece

Power Inductors 10uH 7.17A 0.0189ohms
DRQ125-101-R evaluate
US $.49 - 1.18 / Piece

Power Inductors 100uH 2.2A 0.17ohms
DRQ125-102-R evaluate
US $.79 - 1.18 / Piece

Power Inductors 1000uH 0.7A 1.69ohms

Product Details

Quick Details

Inductance :	10 uH	Tolerance :	20 %
Maximum DC Current :	11.2 Amps	Maximum DC Resistance :	0.0172 Ohms
Operating Temperature Range :	- 40 C to + 125 C	Dimensions :	12.5 mm W x 12.5 mm L x 8 mm H
Shielding :	Shielded	Termination Style :	SMD/SMT

Description

Self Resonant Frequency :
Q Minimum :
Package / Case :
Termination Style : SMD/SMT
Tolerance : 20 %
Dimensions : 12.5 mm W x 12.5 mm L x 8 mm H
Shielding : Shielded
Inductance : 10 uH
Operating Temperature Range : - 40 C to + 125 C
Maximum DC Current : 11.2 Amps
Maximum DC Resistance : 0.0172 Ohms

Parameters:

Technical/Catalog Information	DRQ127-100-R
Vendor	Coiltronics/Div of Cooper/Bussmann (VA)
Category	Inductors, Coils, Chokes
DC Resistance (DCR)	34.30 mOhm Max
Current	3.02A
Number of Coils	2
Mounting Type	Surface Mount
Package / Case	0.492" L x 0.492" W x 0.314" H (12.50mm x 12.50mm x 8.00mm)
Tolerance	±20%
Packaging	Digi-Reel?
Inductance Per Coil	10H
Inductance - Parallel	10.47H
Inductance - Series	41.88H
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DRQ127 100 R DRQ127100R 513 1143 6 ND 51311436ND 513-1143-6
