DR4001

Type :
Package / Case :
Operating Frequency :
Packaging :


Features:

• Designed for Short-Range Wireless Data Communications
• Supports up to 115.2 kbps Encoded Data Transmissions
• 3 V, Low Current Operation plus Sleep Mode
• Ready to Use OEM Module

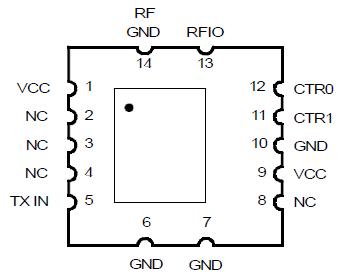

Pinout






Specifications

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fO 868.15 868.55 MHz Data Rate OOK 19.2 kbps Data Rate ASK 115.2 kbps Transmitter Performance (OOK @ 2.4 kbps) Peak Input Current 3 Vdc Supply ITP 12 mA Peak Output Power PO 0.75 mW Turn On/Turn Off Time tON/tOFF 12/6 us Power Supply Voltage Range VCC 2.7 3.5 Vdc Operating Ambient Temperature TA -20 +65 C

Rating	Valuec	Units
Power Supply and All Input/Output Pins	-0.3 to 4.0	V
Non-Operating Case Temperature	-50 to +100
Soldering Temperature (10 seconds)	230

Description

Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Data Transmissions 3 V, Low Current Operation plus Sleep Mode Ready to Use OEM Module

The DR4001 transmitter module is ideal for short-range wireless data applications where robust operation, small size and low power consumption are required. The DR4001 utilizes RFM's TX6001 amplifiersequenced hybrid (ASH) architecture to achieve this unique blend of characteristics. The transmitter includes provisions for on-off keyed (OOK) and ASK modulation. The transmitter employs SAW filtering to suppress output harmonics, facilitating compliance with ETSI 300 220 and similar regulations. The DR4001 includes the TX6001 plus all configuration components in a ready-to-use PCB assembly, excellent for prototyping and intermediate volume production runs.
