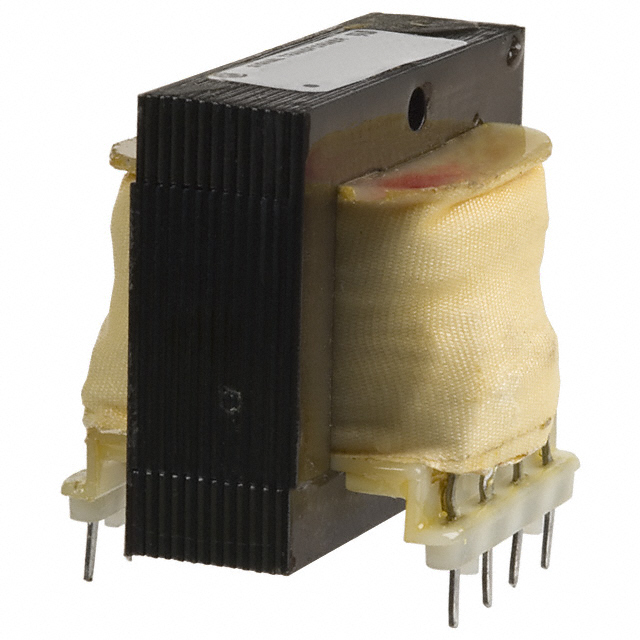

See larger image

SeekIC No. : 004196855 Detail

DPC-40-110: XFRMR PWR 115/230V 40VCT 110MA

DPC-40-110 Data Sheet

US $ 3.68~3.68 / Piece | Get Latest Price

Part Number:: DPC-40-110
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$3.68

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DPC-10-1000 evaluate
US $4.89 - 4.89 / Piece

XFRMR PWR 115/230V 5V 2A 10VA
DPC-10-1000B3 evaluate
US $5.33 - 7.14 / Piece

Transformers Audio & Signal VERT. PC MOUNT XFMR
DPC-10-120 evaluate
US $3.1 - 3.1 / Piece

XFRM PWR 115/230V 5V 240MA 1.2VA

Product Details

Quick Details

Series:	DPC	Manufacturer:	Signal Transformer
Transformer Type:	-	Number of Channels per Chip :	5
Type:	Standard	Maximum Power:	4.4 VA
Turns Ratio - Primary:Secondary:	-	Inductance:	-
Primary Winding(s):	Dual	Current Rating:	-
Secondary Winding(s):	Dual, No Center Tap	DC Resistance (DCR):	-
Series Output Voltage @ Current:	40 VAC @ 110mA	E.T.:	-
Parallel Output Voltage @ Current:	20 VAC @ 220mA	Mounting Type:	Through Hole
Size / Dimension:	41.30mm L x 31.80mm W	Height - Seated (Max):	34.92mm

Description

Manufacturer: Signal Transformer
Transformer Type: -
Type: Standard
Turns Ratio - Primary:Secondary: -
Inductance: -
Current Rating: -
Secondary Winding(s): Dual, No Center Tap
DC Resistance (DCR): -
E.T.: -
Mounting Type: Through Hole
Termination Style: PC Pin
Series: DPC
Primary Winding(s): Dual
Maximum Power: 4.4 VA
Size / Dimension: 41.30mm L x 31.80mm W
Height - Seated (Max): 34.92mm
Series Output Voltage @ Current: 40 VAC @ 110mA
Parallel Output Voltage @ Current: 20 VAC @ 220mA

Parameters:

Technical/Catalog Information	DPC-40-110
Vendor	Signal Transformers
Category	Transformers
Mounting Type	Through Hole
Type	Standard
Primary Winding(s)	Dual
Secondary Winding(s)	Dual, No Center Tap
Series Output Voltage @ Current	40 VAC @ 110mA
Parallel Output Voltage @ Current	20 VAC @ 220mA
Maximum Power	4.4 VA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DPC 40 110 DPC40110 595 1156 ND 5951156ND 595-1156
