DP8212M

Features: · 8-Bit data latch and buffer·Service request flip-flop for generation and control of interrupts· 0.25 mA input load current·TRI-STATE TTL output drive capability· Outputs sink 15 mA· Asynchronous latch clear· 3.65V output for direct interface to INS8080A· Reduces system package count by...

product image

DP8212M Picture
See larger image
SeekIC No. : 004327918 Detail

DP8212M: Features: · 8-Bit data latch and buffer·Service request flip-flop for generation and control of interrupts· 0.25 mA input load current·TRI-STATE TTL output drive capability· Outputs sink 15 mA· Asyn...

DP8212M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DP8212M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-Bit data latch and buffer
·Service request flip-flop for generation and control of interrupts
· 0.25 mA input load current
·TRI-STATE TTL output drive capability
· Outputs sink 15 mA
· Asynchronous latch clear
· 3.65V output for direct interface to INS8080A
· Reduces system package count by replacing buffers, latches, and multiplexers in microcomputer systems


Pinout

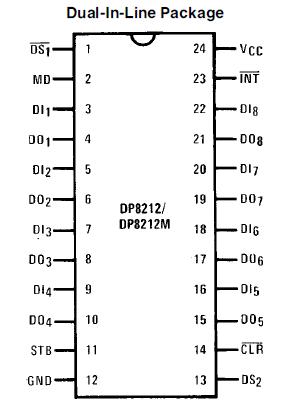

Connection Diagram


Specifications

Storage Temperature                              -65 to a160
All Output or Supply Voltages                       -0.5V to a7V
All Input Voltages                                       -1.0V to 5.5V
Output Currents                                                 125 mA
Maximum Power Dissipation* at 25
Cavity Package                                                1903 mW
Molded Package                                               2005 mW



Description

The DP8212/DP8212M is an 8-bit input/output port contained in a standard 24-pin dual-in-line package. The device, which is fabricated using Schottky Bipolar technology, is part of National Semiconductor's 8080A support family. The DP8212/DP8212M can be used to implement latches, gated buffers, or multiplexers. Thus, all of the major peripheral and input/output functions of a microcomputer system can be implemented with this device.

The DP8212/DP8212M includes an 8-bit latch with TRI-STATEÉ output buffers, and device selection and control logic. Also included is a service request flip-flop for the generation and control of interrupts to the microprocessor.
